Change-over Switch 4P 400A | IP00 | Interlockable Cover by Hager
Change-over switch with 400A rated current and IP00 protection—ideal for industrial and commercial power management. Built for robust power management, with an interlockable cover for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

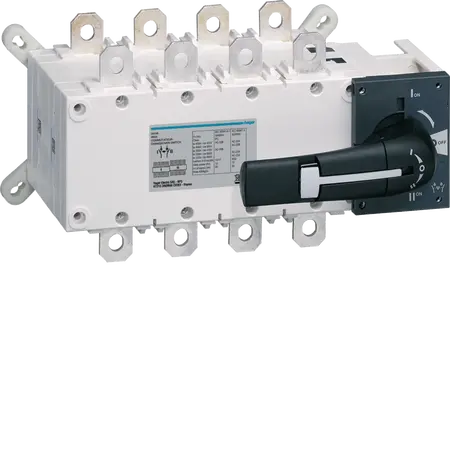

Product Name/Title: Change-over switch 4P 400A
Brand: Hager
SKU: HI456
Alternatively Known As: 400A Change-over Switch, 4 Pole Manual Transfer Switch, Hager HI456
Technical Specifications
- Rated insulation voltage: 1000 V
- Rated impulse withstand voltage: 12000 V
- Rated short-time withstand current: 15 kA
- Rated conditional short-circuit current: 50 kA
- Rated operational power under 400 V AC: 263000 W
- Total power loss under IN: 60.40 W
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Connection cross-section for rigid conductor: 185 - 240 mm²
- Dimensions (H x L x W): 170mm x 218mm x 312mm
- Weight: 10 kg
Key Features
- Rated current of 400 A for robust power management.
- IP00 ingress protection for indoor use.
- Interlockable cover for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and management
- Commercial: Large buildings and facilities
- General: Any application requiring reliable power switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Change-over Switch 4P 400A is available now for immediate purchase. Ideal for industrial and commercial power management applications.
