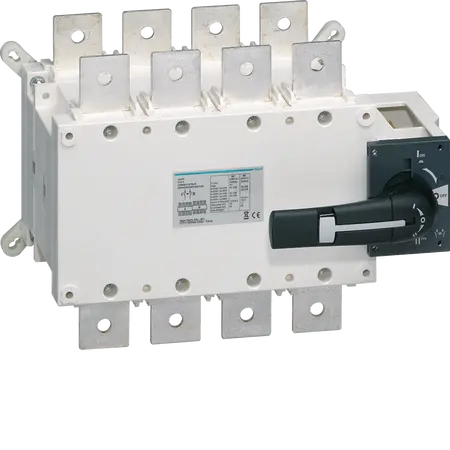

Change-over Switch 4P 630A | 1000V Insulation | Interlockable Cover by Hager
Change-over switch with 630A rated current and 1000V insulation—ideal for industrial and commercial power distribution. Built for safety with an interlockable cover, ensuring reliable power switching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Change-over switch 4P 630A
Brand: Hager
SKU: HI458
Alternatively Known As: Manual Transfer Switch, Load Break Switch, Changeover Switch
Technical Specifications
- Rated insulation voltage: 1000 V
- Rated impulse withstand voltage: 12000 V
- Rated short-time withstand current: 17 kA
- Rated conditional short-circuit current: 50 kA
- Rated operational power under 400 V AC: 414000 W
- Total power loss under IN: 129.60 W
- Number of poles: 4
- Frequency: 50 - 60 Hz
- Operating temperature: -20 - 70 °C
- Connection cross-section for rigid conductor: 2x 185 mm²
- Dimensions (H x L x W): 260mm x 295mm x 379mm
- Weight: 15 kg
Key Features
- Rated current of 630 A for robust performance.
- IP00 ingress protection for indoor use.
- Interlockable cover for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
- Industrial: Power distribution systems
- Commercial: Large buildings and facilities
- General: Any application requiring reliable power switching
Standards & Compliance
- Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Commitment to reducing carbon footprint and improving environmental performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Hager Change-over Switch 4P 630A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
