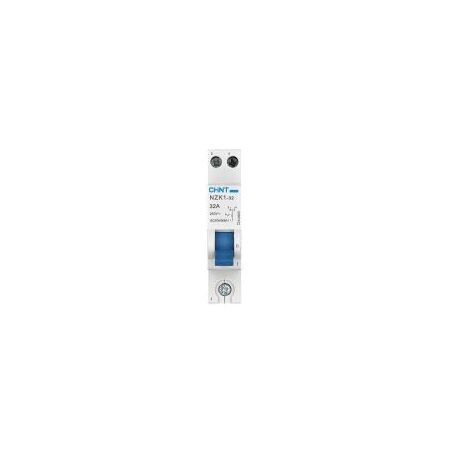

Changeover Switch 1P 32A 250V DIN Rail NZK1 Chint

BRAND: CABAC
SKU: 643000
$62.60 List price: $83.40
+ −
30 Days Return Electricians Unlock Trade Access
Chint NZK1 changeover switch features 1P 32A, 250V AC 50/60Hz to IEC 60669-1 and TH35 DIN rail mount. Ideal for manual supply selection in residential boards.

Alternatively Known As: 1P manual changeover switch, single-pole transfer switch, DIN rail source selector, 1-0-2 changeover switch

Technical Specifications
  • Rated Current: 32A
  • Rated Voltage: 250V AC
  • Rated Frequency: 50/60Hz
  • Number of Poles: 1P
  • Switching Positions: 1-0-2
  • Standard: IEC 60669-1
  • Mounting: TH35-7.5 DIN rail
  • Operational Endurance: 10,000 operations
  • Rated Making and Breaking Performance: 200 operations
  • Operating Temperature: -5°C to +40°C
  • Maximum Installation Altitude: 2,000m
  • Terminal Spacing: 45mm
  • Dimensions (H x L x W): 85.3mm x 49.5mm x 18mm
  • Weight: 0.18 kg
Key Features
  • Manual switching between two electrical circuits or supply sources
  • Three-position I-0-II operation with a positive off position
  • Compact one-module DIN rail format
  • Suitable for residential, commercial and light industrial distribution boards
  • Single-pole switching configuration
  • KEMA-approved product range
  • Designed for AC 50/60Hz applications
Professional Installation Requirements
  • Installation and connection to mains or switchboard wiring must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical requirements.
Applications
  • Manual mains-to-backup supply selection
  • Residential distribution boards
  • Small commercial switchboards
  • Control circuits and low-voltage power distribution
  • Generator and alternate-supply changeover applications where single-pole switching is suitable
Standards & Compliance
  • AS/NZS 3000:2018 — installation and wiring requirements for low-voltage electrical installations
Environmental Benefits
  • RoHS documentation is available for the NZK1-32 product range
  • 10,000-operation endurance can extend service life and reduce replacement waste
  • Compact DIN rail construction reduces enclosure space and associated material use
Warranty Information

CHINT's general policy provides 27 months from the date of manufacture for other low-voltage apparatus, subject to authorised sales channels and applicable contract terms.

Available Now

Available through authorised CHINT distributors in Australia.
