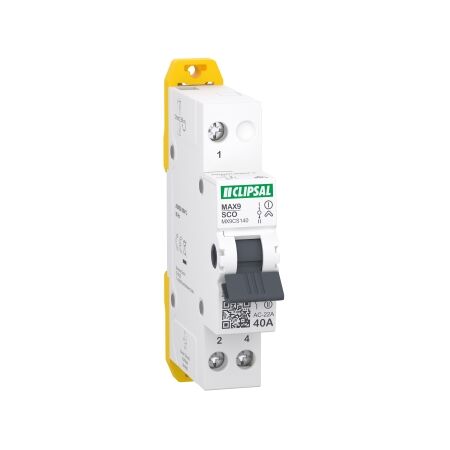

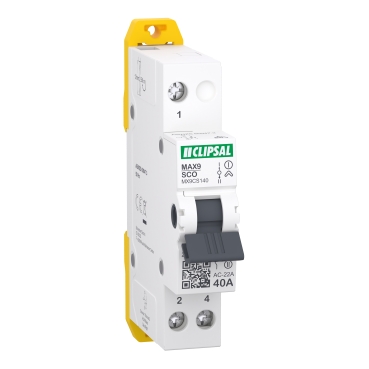

Changeover Switch 1P 40A | 230/240VAC | IP20/IP40 Protection | Toggle Control by Clipsal
Changeover switch with 1P 40A capacity and 230/240VAC voltage—ideal for residential power management. Built for easy operation with toggle control and versatile IP20/IP40 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9, Changeover switch, 1P, 40A, 230/240VAC
Brand: Clipsal
SKU: MX9CS140
Alternatively Known As: Changeover switch, Power source switch, Electrical switch
Technical Specifications
- Rated operational voltage: 230/240V AC
- Electrical durability: 7000 cycles
- Mechanical durability: 10000 cycles
- Rated insulation voltage: 690V
- Rated impulse withstand voltage: 6kV
- Rated short-circuit making capacity: 0.8kA
- Rated short-time withstand current: 0.8kA during 1s at 230/240V
- Utilisation category: AC-23A/AC-22A
- Pollution degree: 3
- Locking options: Padlock in ON position
- Dimensions (H x L x W): 85mm x 44mm x 17.5mm
- Weight: 0.1 kg
Key Features
- Toggle control type for easy operation.
- IP20/IP40 protection rating for versatile installation.
- Suitable for vertical or any mounting position.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Small buildings requiring reliable power source changeover.
Standards & Compliance
- Complies with AS/NZS 60947-3 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directive, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal MAX9 Changeover Switch 1P 40A 230/240VAC is available now for immediate purchase. Ideal for residential applications requiring reliable power source management.
