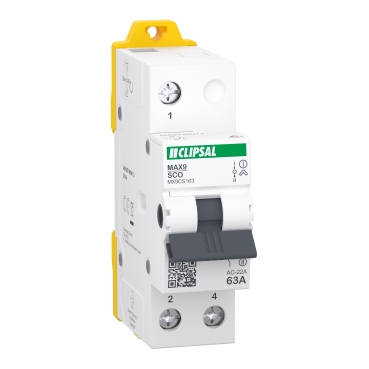

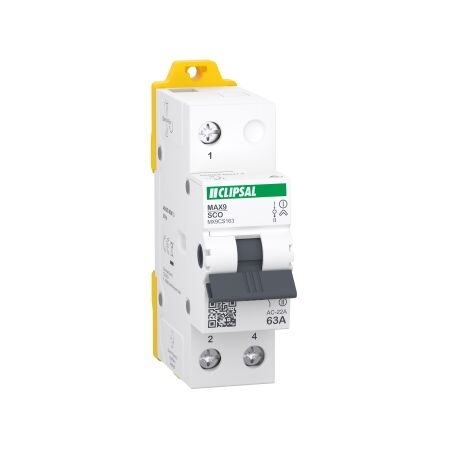

Changeover Switch 1P 63A | 230/240V | IP20/IP40 Rated | Toggle Control by Clipsal
Changeover switch with 1P 63A capacity and 230/240V operational voltage—ideal for residential power source switching. Built for reliability, with IP20/IP40 protection and easy toggle control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MAX9, Changeover switch, 1P, 63A
Brand: Clipsal
SKU: MX9CS163
Alternatively Known As: Changeover Switch, Power Switch, Supply Switch
Technical Specifications
- Rated operational voltage: 230/240 V
- Electrical durability: 7000 cycles
- Mechanical durability: 10000 cycles
- Rated insulation voltage: 690 V
- Rated impulse withstand voltage: 6 kV
- Rated short-circuit making capacity: 1.26 kA
- Rated short-time withstand current: 1.26 kA during 1 s at 230/240 V
- Utilisation category: AC-23A/AC-22A
- Tightening torque: 4 N.m
- Dimensions (H x L x W): 85mm x 44mm x 26.25mm
- Weight: 0.12 kg
Key Features
- Designed for changing the source of supply.
- IP20/IP40 rated for protection inside enclosure.
- Toggle control type for easy operation.
- Suitable for vertical or any mounting position.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Small buildings requiring reliable changeover solutions.
Standards & Compliance
- Complies with AS/NZS 60947-3 for safety and performance standards.
Environmental Benefits
- Compliant with RoHS directive, ensuring reduced environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal MAX9 Changeover Switch 1P 63A is available now for immediate purchase. Ideal for residential applications requiring reliable power source switching.
