Changeover Switch 2-Pole with Off | 25A | DIN Rail Mount | IP21 by NHP
Changeover switch with 2-pole design and 25A rated current—ideal for industrial and commercial power distribution. Built for easy installation on DIN rails, with IP21 protection for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

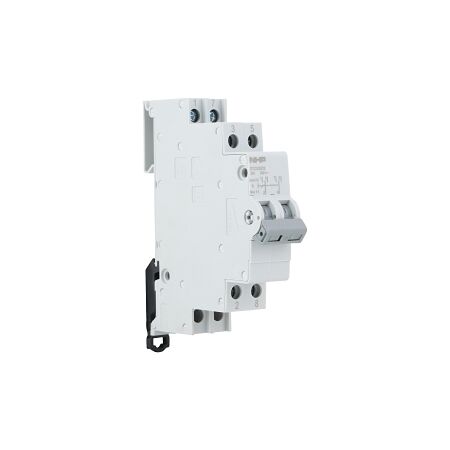

Product Name/Title: NHP DIN-T Changeover Switch 2Pole with Off 25A I 0 II
Brand: NHP
SKU: DTCS2523
Alternatively Known As: Changeover Switch, Off-load Switch, DIN Rail Switch
Technical Specifications
- Number of Poles: 2
- Nominal Voltage: 415 V
- Rated Current: 25 A
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1-6 mm²
- Wire Conductor Size (Flex Cable): 0.75-2.5 mm²
- Degree of Protection (IP Front Side): IP21
- Complete Device in Housing: Yes
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 20000 cycles
- Number of Switch Positions: 3
- Operating Temperature: -25-55 °C
- Dimensions (H x L x W): 86mm x 68mm x 18mm
- Weight: 0.5 kg
Key Features
- 2-pole design with a rated current of 25A.
- DIN rail mounting for easy installation.
- IP21 rated for protection against solid objects greater than 12mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring changeover functionality
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Changeover Switch 2Pole with Off 25A I 0 II is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
