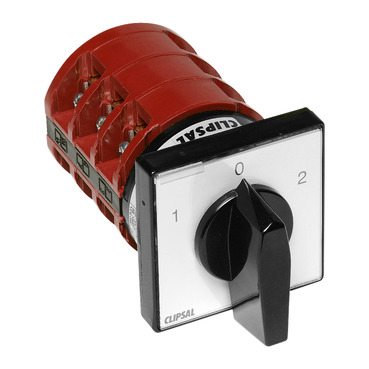

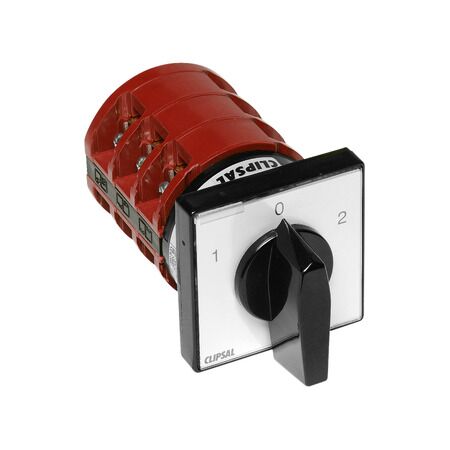

Changeover Switch 2Pole | 63A Rated Current | IP20 Indoor Use | @Pack of 1 | by Clipsal
The Changeover Switch 2Pole is designed for safe and reliable power source switching, featuring a robust 63A rated current and IP20 rating for indoor use. Ideal for residential, commercial, and industrial applications, this switch ensures efficient backup generator switching and is easy to install on DIN rails, making it perfect for critical equipment and machinery requiring dual power sources.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Changeover Switch 2Pole | 63A Rated Current | IP20 Indoor Use | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: CLI7GN63/53/U
Alternatively Known As: 2 Pole Changeover Switch, Generator Changeover Switch, Double Pole Transfer Switch, Power Source Selector Switch
Technical Specifications
- Number of Poles: 2
- Rated Current: 63A
- Rated Voltage: 415V AC
- Mounting: DIN rail
- Switching Function: Changeover (I-0-II)
- Terminal Capacity: 25mm²
- IP Rating: IP20 (indoor use)
- Mechanical Endurance: 10,000 operations
- Dimensions (H x L x W): 80mm x 70mm x 36mm
- Weight: 0.4 kg
Key Features
- 2 pole changeover switch for safe and reliable power source switching
- Robust construction for long-term durability
- Easy to install DIN rail mounting
- Clear ON/OFF/Changeover indication
- Suitable for use with generators and alternative power supplies
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Residential: Backup generator switching
- Commercial: Power source changeover for critical equipment
- Industrial: Machinery and equipment requiring dual power sources
Standards & Compliance
- Complies with AS/NZS 60947.3 for switchgear and controlgear
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient use of backup power sources, reducing downtime and energy waste
- Durable design minimizes replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal 2 Pole Changeover Switch CLI7GN63/53/U is available for immediate purchase. Ideal for reliable power source switching in residential, commercial, and industrial settings.
