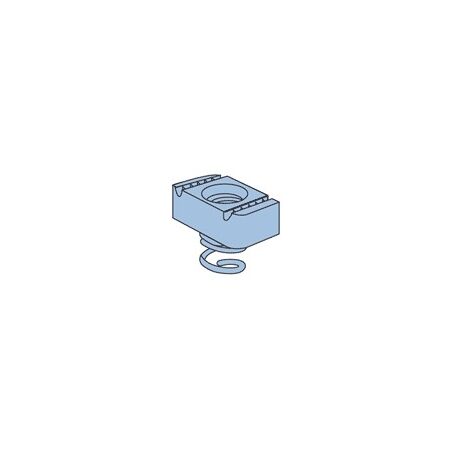

Channel Nut with Spring M12 | Hot Dipped Galvanised | P4010H
Channel nut with spring, M12 size, and hot dipped galvanised finish—ideal for secure fastening in construction and industrial applications. Built for durability and corrosion resistance, with easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Channel Nut with Spring M12 | Hot Dipped Galvanised | P4010H
SKU: P4010H
Alternatively Known As: Spring Channel Nut M12, Unistrut Spring Nut M12, Hot Dipped Galvanised Channel Nut
Technical Specifications
- Material: Steel bars with case hardened zinc plated nuts
- Finish: Hot dipped galvanised to AS1214
- Thread Type: Metric coarse
- Size: M12
- Box Quantity: 100 pieces
- Compliance: Nuts and bolts manufactured to AS1111 & AS1112
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.05 kg
Key Features
- Manufactured from steel bars with case hardened zinc plated nuts for positive biting action
- Includes spring for secure fastening in Unistrut channels
- Hot dipped galvanised finish for enhanced corrosion resistance
- Metric coarse threads for compatibility with standard bolts
- Complies with Australian Standards AS1111 and AS1112 for nuts and bolts
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with structural framing systems to ensure secure and compliant fastening.
Applications
- Structural framing and support systems
- Electrical and mechanical installations
- Construction and building projects requiring secure channel fastening
Standards & Compliance
- AS1111 – Steel Nuts
- AS1112 – Steel Bolts
- AS1214 – Hot Dipped Galvanised Coatings
Environmental Benefits
- Hot dipped galvanised finish extends product life reducing replacement frequency and waste
- Steel material is recyclable contributing to sustainable construction practices
Warranty Information
Warranty against manufacturing defects as per Unistrut standard terms and conditions.
Available Now
The Channel Nut with Spring M12 Hot Dipped Galvanised P4010H is available now for immediate purchase. Ideal for construction, electrical, and mechanical fastening applications.
