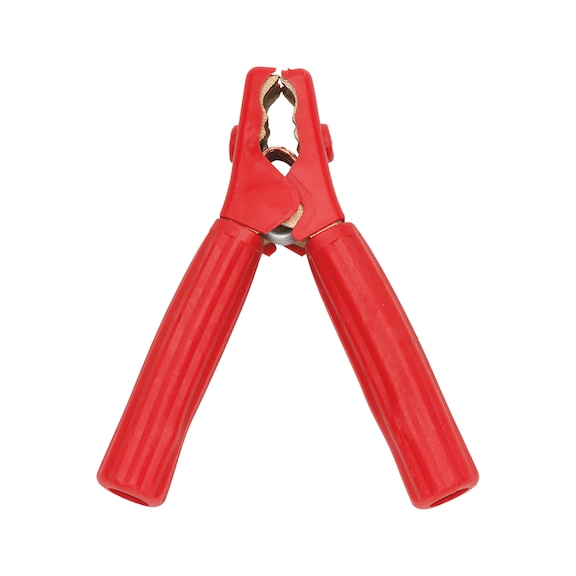

Charger Clamp Fully Insulated 1000A | Galvanised Brass | Cold-Resistant EVA | Red | @Each of 1 | by Wurth
The Charger Clamp Fully Insulated 1000A is designed for high current applications, featuring a durable galvanised brass construction and cold-resistant Escorena Ultra EVA insulation. Ideal for automotive battery charging and industrial electrical connections, this clamp ensures reliable conductivity with its copper-mesh strip terminal connection, making it perfect for heavy-duty electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Charger Clamp Fully Insulated 1000A | Galvanised Brass | Cold-Resistant EVA | Red | @Each of 1 | by Wurth
Brand: Wurth
SKU: 7733051
Alternatively Known As: Battery charger clamp, insulated battery clamp, high current clamp, 1000A battery clamp
Technical Specifications
- Max. current: 1000 A
- Colour: Red
- Length: 150 mm
- Opening angle: 45 degrees
- Width of mouth: 30 mm
- Max. wire cross section: 50 mm²
- Material: Galvanised cast brass with copper-mesh strip
- Insulation: Cold-resistant Escorena Ultra EVA
- Dimensions (H x L x W): 50mm x 150mm x 30mm
- Weight: 0.32 kg
Key Features
- Galvanised cast brass construction for durability and corrosion resistance
- Copper-mesh strip terminal connection for reliable conductivity
- Cold-resistant insulation made from Escorena Ultra EVA
- Cable connection supports up to 50 mm² wire cross section
- Serrated screw for secure cable attachment
- Opening angle of 45° with 30 mm mouth width
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper connection and safety compliance.
Applications
- Automotive battery charging and maintenance
- Industrial electrical connections requiring high current clamps
- Heavy-duty electrical and battery systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- High-quality insulation improves safety and reduces energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Fully Insulated 1000A Charger Clamp is available now for immediate purchase. Ideal for automotive and industrial electrical applications requiring secure high current connections.
