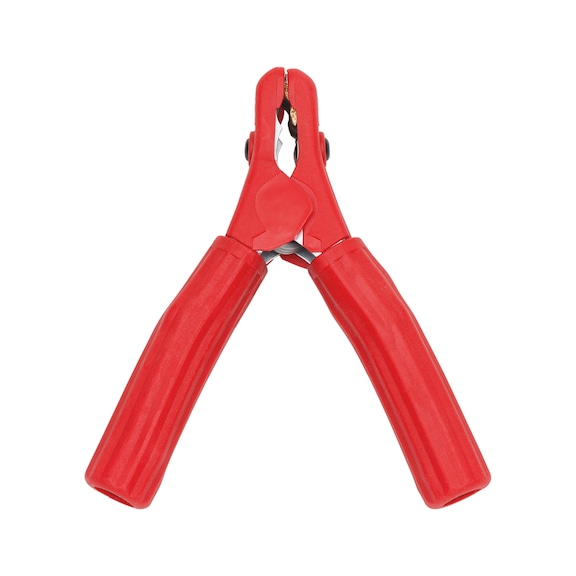

Charger Clamp Fully Insulated | 200 A Maximum Current | Cold-Resistant Escorena EVA | Zinc-Plated Steel | by Wurth
The Charger Clamp Fully Insulated is designed for reliable automotive battery charging and maintenance, featuring a maximum current of 200 A and cold-resistant insulation made from Escorena Ultra EVA. Built for durability with zinc-plated sheet steel and brass inlay, it ensures secure connections for electrical testing and industrial use, making it an essential tool for technicians and electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Charger Clamp Fully Insulated | 200 A Maximum Current | Cold-Resistant Escorena EVA | Zinc-Plated Steel | by Wurth
Brand: Wurth
SKU: 7733061
Alternatively Known As: Battery charger clamp, insulated battery clamp, 200 amp battery clip, automotive battery clamp
Technical Specifications
- Maximum current: 200 A
- Material: Zinc-plated sheet steel with zinc-plated brass inlay
- Insulation: Cold-resistant Escorena Ultra EVA
- Cable connection: Supports up to 35 mm² wire cross section
- Connection hardware: M6 bolt and serrated locking nut
- Opening angle: 45 degrees
- Width of mouth: 35 mm
- Weight: Approximately 160 g
- Dimensions (H x L x W): 45mm x 160mm x 35mm
- Weight: 0.16 kg
Key Features
- Zinc-plated sheet steel construction with reinforced zinc-plated brass inlay for durability
- Cold-resistant insulation made from Escorena Ultra EVA
- Cable connection supports up to 35 mm² wire cross section
- Equipped with M6 bolt and serrated locking nut for secure cable crimping
- Strain relief design to prevent cable damage
- Opening angle of 45 degrees with 35 mm width of mouth
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure safe and proper connection.
Applications
- Automotive battery charging and maintenance
- Electrical testing and diagnostics
- Industrial and workshop use requiring secure electrical connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Cold-resistant insulation enhances longevity and safety in various environments
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Fully Insulated Charger Clamp 200A is available now for immediate purchase. Ideal for automotive, industrial, and electrical maintenance applications.
