Charger Clamp Fully Insulated | 200 A | Zinc-Plated Steel & Cold-Resistant | @PCS by Wurth

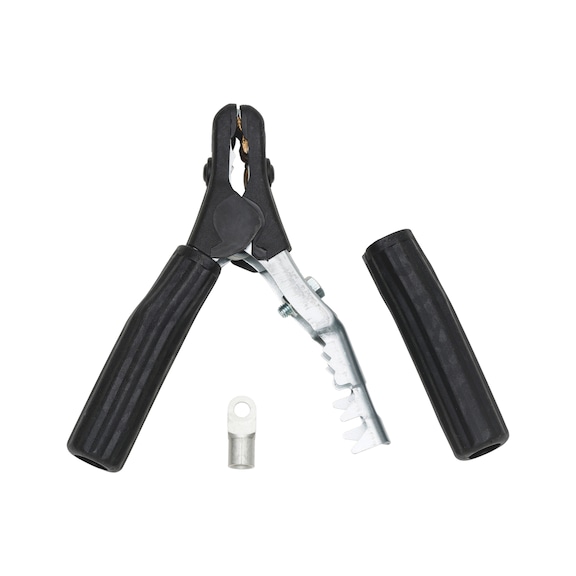

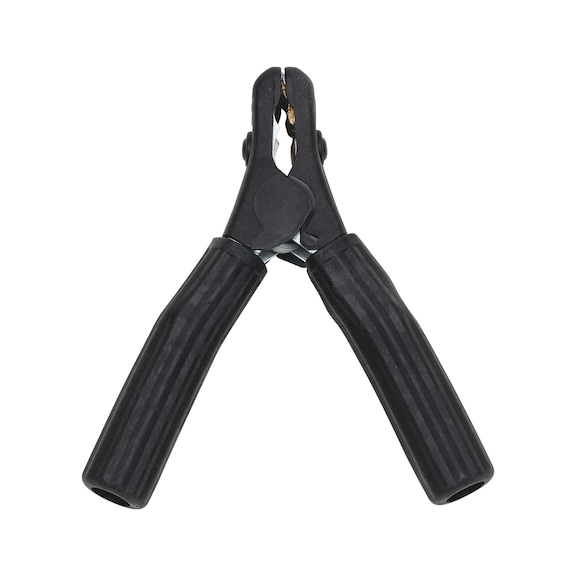

The Charger Clamp Fully Insulated is designed for secure battery connections, featuring a robust 200 A capacity and cold-resistant Escorena Ultra EVA insulation. Ideal for automotive and industrial applications, this clamp ensures reliable performance with a strain relief design and a 45-degree opening angle, making it perfect for both charging and maintenance tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Charger Clamp Fully Insulated | 200 A | Zinc-Plated Steel & Cold-Resistant | @PCS by Wurth
Brand: Wurth
SKU: 7733066
Alternatively Known As: Battery charger clamp, insulated battery clamp, 200 amp battery clip, heavy-duty battery clamp
Technical Specifications
- Max. current: 200 A
- Material: Zinc-plated sheet steel with zinc-plated brass inlay
- Insulation: Cold-resistant Escorena Ultra EVA
- Max. wire cross section: 35 mm²
- Opening angle: 45 degrees
- Width of mouth: 35 mm
- Cable connection: M6 bolt with serrated locking nut
- Weight: approx. 160 g
- Dimensions (H x L x W): 45mm x 160mm x 35mm
- Weight: 0.16 kg
Key Features
- Zinc-plated sheet steel construction with reinforced zinc-plated brass inlay on current-carrying side
- Cold-resistant insulation made from Escorena Ultra EVA
- Cable connection supports up to 35 mm² wire cross section
- Equipped with M6 bolt and serrated locking nut for secure cable crimping
- Strain relief design for durability
- Opening angle of 45 degrees with 35 mm width of mouth
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure safe and compliant electrical connections.
Applications
- Automotive battery charging and maintenance
- Industrial battery connections
- Electrical testing and diagnostics requiring secure clamp connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Cold-resistant insulation enhances longevity and performance in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Fully Insulated 200A Charger Clamp is available for immediate purchase, ideal for automotive and industrial battery connection applications.
