Trade Discount 20%

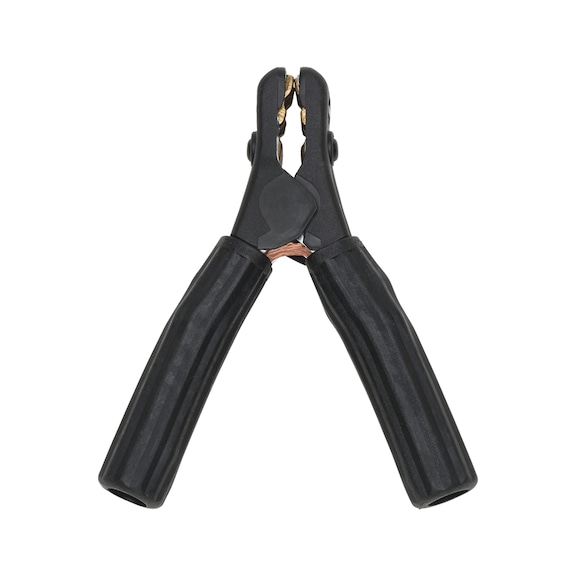

Charger Clamp Fully Insulated 600A | Zinc-Plated Steel | Cold-Resistant Insulation | @Each of 1 | by Wurth
The Charger Clamp Fully Insulated 600A is designed for reliable automotive and industrial battery charging. Featuring a zinc-plated steel construction and cold-resistant Escorena Ultra EVA insulation, this clamp ensures durability and safety during use. Ideal for electrical connections and maintenance, it supports up to 35 mm² wire cross-section, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Charger Clamp Fully Insulated 600A | Zinc-Plated Steel | Cold-Resistant Insulation | @Each of 1 | by Wurth
Brand: Wurth
SKU: 77330561
Alternatively Known As: Battery charger clamp, insulated battery clamp, 600 amp battery clip, zinc-plated battery clamp
Technical Specifications
- Max. current: 600 A
- Material: Zinc-plated sheet steel with copper-mesh strip terminal
- Max. wire cross section: 35 mm²
- Opening angle: 45 degrees
- Width of mouth: 35 mm
- Insulation: Cold-resistant Escorena Ultra EVA
- Cable connection: M6 bolt and serrated locking nut
- Dimensions (H x L x W): 45mm x 160mm x 35mm
- Weight: 0.23 kg
Key Features
- Zinc-plated sheet metal construction with copper-mesh strip terminal connection
- Each clamp side reinforced by a zinc-plated brass insert
- Cold-resistant insulation made from Escorena Ultra EVA
- Cable connection supports up to 35 mm² wire cross section
- Equipped with M6 bolt and serrated locking nut for secure cable crimping
- Strain relief design for durability and safety
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure safe and proper connection.
Applications
- Automotive battery charging and electrical connection
- Industrial and workshop battery maintenance
- Electrical testing and temporary power connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Cold-resistant insulation enhances longevity and performance in various environments
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Fully Insulated 600A Charger Clamp is available for immediate purchase, ideal for automotive and industrial battery charging applications.
