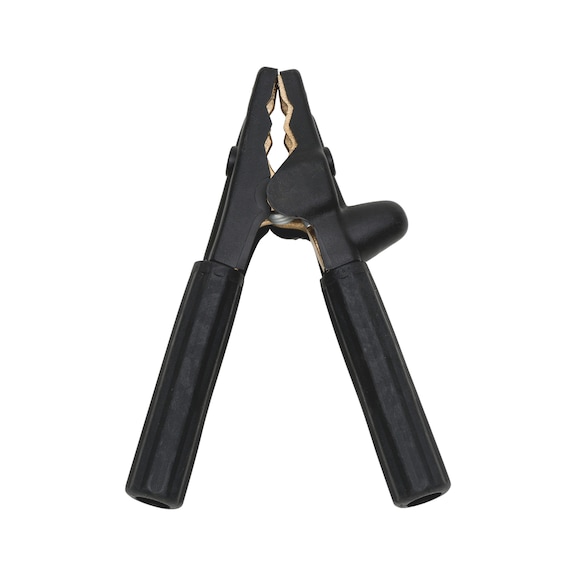

Charger Clamp Fully Insulated 750A | Brass Casting | Cold-Resistant Escorene EVA | Black | by Wurth
The Charger Clamp Fully Insulated 750A is designed for safe and efficient battery connections, featuring a durable brass casting and cold-resistant Escorene Ultra EVA insulation. Ideal for automotive and industrial applications, this clamp ensures reliable performance with a maximum current of 750A and a 30-degree opening angle, making it perfect for various battery charging and maintenance tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Charger Clamp Fully Insulated 750A | Brass Casting | Cold-Resistant Escorene EVA | Black | by Wurth
Brand: Wurth
SKU: 7733046
Alternatively Known As: 750A Battery Charger Clamp, Fully Insulated Battery Clamp, Heavy Duty Charger Clamp
Technical Specifications
- Max. current: 750 A
- Colour: Black
- Length: 180 mm
- Opening angle: 30 degrees
- Width of mouth: 30 mm
- Max. wire cross section: 50 mm²
- Material: Brass casting
- Insulation: Cold-resistant Escorene Ultra EVA
- Dimensions (H x L x W): 50mm x 180mm x 30mm
- Weight: 0.36 kg
Key Features
- Fully insulated for safety
- Brass casting for durability
- Cold-resistant insulation made from Escorene Ultra EVA

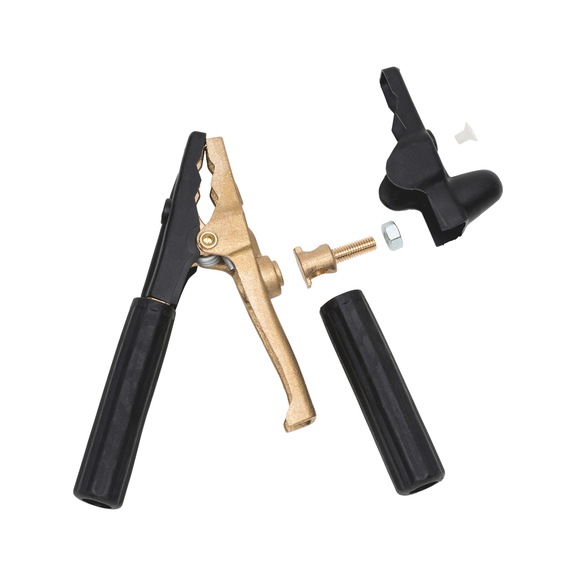

- Connection for cables up to 50 mm² using a connecting bolt
- Cable assembly without cable clamp
- Opening angle of 30 degrees with 30 mm mouth width
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and safety compliance.
Applications
- Automotive battery charging and maintenance
- Industrial battery connections
- Electrical testing and power supply connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Cold-resistant insulation ensures long product life in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Fully Insulated 750A Charger Clamp is available now for immediate purchase. Ideal for automotive and industrial battery connection applications.
