Cheese Head Screw ISO 7379 | Hexagon Socket Head | Steel 12.9 | Plain Finish | @Pack of 10 | by Wurth
Cheese head screw ISO 7379 with a hexagon socket head and steel 12.9 construction is perfect for mechanical assemblies requiring precise positioning and lateral force absorption. Designed for high strength and compliance with ISO standards, this screw is ideal for automotive and industrial equipment fastening, ensuring durability and reliability in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cheese Head Screw ISO 7379 | Hexagon Socket Head | Steel 12.9 | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 41188550
Alternatively Known As: Shoulder screw, Hex socket shoulder bolt, Cheese head shoulder screw, ISO 7379 shoulder screw

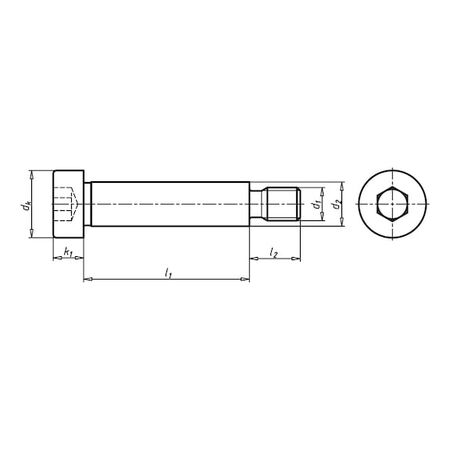

Technical Specifications
- Thread type x nominal diameter: M5
- Length: 50 mm
- Shank diameter: 6 mm
- Head diameter: 10 mm
- Head height: 4.5 mm
- Standards: ISO 7379
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive: HS3
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Tolerance class: f9
- Thread length (metric thread): 9.75 mm
- Design: With fit shaft
- Product class: A
- Dimensions (H x L x W): 4.5mm x 50mm x 10mm
- Weight: 0.05 kg
Key Features
- Shoulder screws designed to absorb lateral forces
- Shaft with tolerance class f9 for precise fit
- Hexagon socket head for secure drive
- Steel material with property class 12.9 for high strength
- Plain surface finish
- Compliant with ISO 7379 standard
- Metric thread with pitch 0.8 mm
- Limited ultimate load capacity due to geometry, marked with 0 before strength class
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure correct torque and fitment according to mechanical design specifications.
Applications
- Mechanical assemblies requiring precise positioning and lateral force absorption
- Machine construction and maintenance
- Automotive and industrial equipment fastening
- Situations where workpiece alignment and safeguarding is critical
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for mechanical and industrial fastening applications requiring precision and strength.
