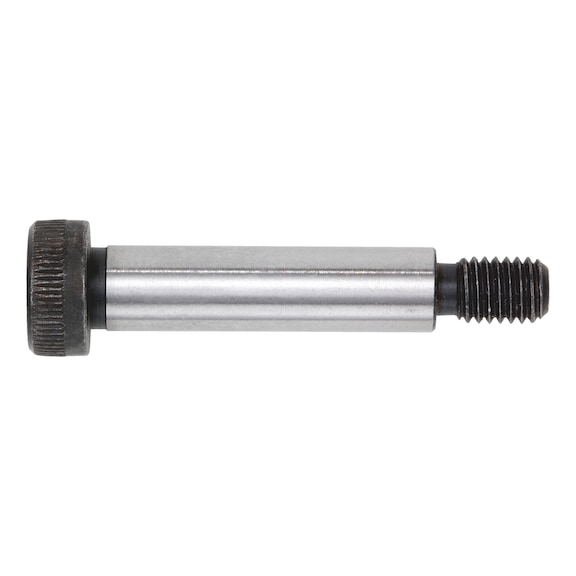

Cheese Head Screw ISO 7379 | Hexagon Socket Head | Steel 12.9 | Plain Finish | @Pack of 10 | by Wurth
Cheese head screw ISO 7379 with a hexagon socket head and steel 12.9 construction is perfect for mechanical assemblies requiring precise positioning and lateral force absorption. Designed for industrial machinery and automotive applications, this screw ensures secure connections with its durable plain finish and high-strength material.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cheese Head Screw ISO 7379 | Hexagon Socket Head | Steel 12.9 | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 41188560
Alternatively Known As: Shoulder screw, Hex socket shoulder bolt, ISO 7379 screw, Precision shoulder screw
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 60 mm
- Shank diameter (d2): 6 mm
- Head diameter (dk): 10 mm
- Head height (k1): 4.5 mm
- Standards: ISO 7379
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive: HS3
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Tolerance class: f9
- Thread length (metric thread) (l2): 9.75 mm
- Design: With fit shaft
- Product class: A
- Dimensions (H x L x W): 4.5mm x 60mm x 10mm
- Weight: 0.05 kg
Key Features
- Shoulder screws absorb lateral forces and safeguard workpiece positioning
- Shaft with tolerance class f9 for precise fit
- Hexagon socket head for secure internal drive
- Steel material with property class 12.9 for high strength
- Plain surface finish
- Compliant with ISO 7379 standard
- Metric thread with 0.8 mm pitch
- Limited ultimate load capacity due to geometry, marked with 0 before strength class
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure correct torque and positioning for optimal performance.
Applications
- Mechanical assemblies requiring precise positioning and lateral force absorption
- Industrial machinery and equipment
- Automotive and aerospace component fastening
- General engineering applications needing secure screw connections with shoulder support
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Cheese Head Screw with Hexagon Socket Head and Shoulder ISO 7379 Steel 12.9 is available for immediate purchase, ideal for precision mechanical and industrial applications.
