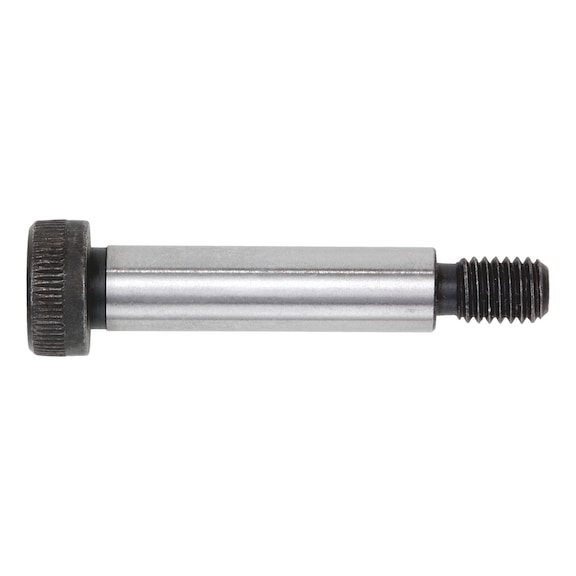

Cheese Head Screw ISO 7379 | Hexagon Socket Head | Steel 12.9 | Plain Finish | @Pack of 10 | by Wurth
Cheese Head Screw ISO 7379 with a hexagon socket head and steel 12.9 construction is perfect for mechanical assemblies requiring precise positioning and lateral force absorption. Designed for industrial equipment and machinery fastening, this screw ensures a secure fit and high strength, making it ideal for applications where workpiece alignment is critical.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cheese Head Screw ISO 7379 | Hexagon Socket Head | Steel 12.9 | Plain Finish | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 4118858
Alternatively Known As: Shoulder screw, Hex socket shoulder bolt, ISO 7379 shoulder screw, Precision shoulder screw
Technical Specifications
- Thread type x nominal diameter (d1): M5
- Length (l1): 8 mm
- Shank diameter (d2): 6 mm
- Head diameter (dk): 10 mm
- Head height (k1): 4.5 mm
- Standards: ISO 7379
- Material: Steel
- Property class: 12.9
- Surface: Plain
- RoHS-compliant: Yes
- Head type: Socket head
- Drive type: Hexagon socket
- Internal drive: HS3
- Thread type: Metric thread
- Pitch: 0.8 mm
- Thread form: Standard metric thread
- Tolerance class: f9
- Thread length (metric thread) (l2): 9.75 mm
- Design: With fit shaft
- Product class: A
- Dimensions (H x L x W): 4.5mm x 8mm x 10mm
- Weight: 0.01 kg
Key Features
- Shoulder screws designed to absorb lateral forces
- Shaft with tolerance class f9 for precise fit
- Hexagon socket head for secure drive
- Steel material with property class 12.9 for high strength
- Plain surface finish
- Compliant with ISO 7379 standard
- Metric thread with 0.8 mm pitch
- Marked with a 0 in front of strength class due to limited ultimate load capacity
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure correct torque and fitment according to mechanical design specifications.
Applications
- Mechanical assemblies requiring precise positioning and lateral force absorption
- Machine components where workpiece alignment is critical
- Industrial equipment and machinery fastening
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Cheese Head Screw with Hexagon Socket Head and Shoulder ISO 7379 is available for immediate purchase. Ideal for precision mechanical and industrial fastening applications.
