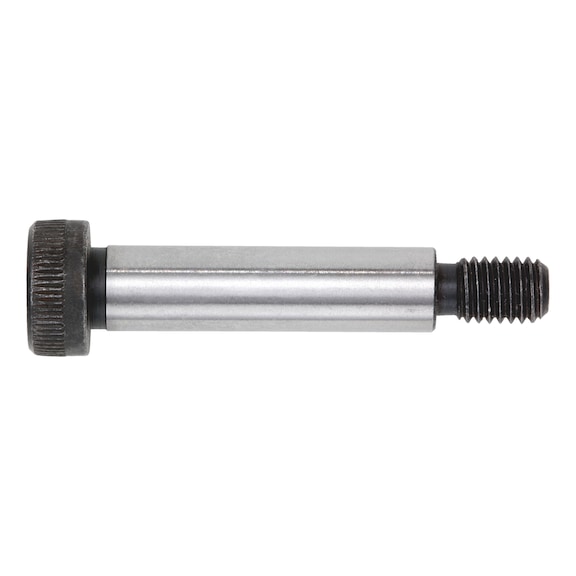

Cheese Head Screw ISO 7379 | Steel 12.9 | Hexagon Socket Head | Shoulder Design | by WURTH
The Cheese Head Screw ISO 7379 is crafted from durable steel grade 12.9, featuring a hexagon socket head and shoulder design for optimal lateral force absorption. Ideal for mechanical assemblies and industrial applications, this screw ensures precise positioning of workpieces, making it a reliable choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cheese Head Screw ISO 7379 | Steel 12.9 | Hexagon Socket Head | Shoulder Design | by WURTH
Brand: WURTH
SKU: 411885 25
Alternatively Known As: Shoulder screw, Hex socket shoulder bolt, Cheese head shoulder screw, ISO 7379 shoulder screw
Technical Specifications
- Material: Steel grade 12.9
- Head type: Cheese head with hexagon socket
- Standard: ISO 7379
- Tolerance: f9
- Shank diameter varies: M5 = 6 mm, M10 = 12 mm, M20 = 24 mm
- Load capacity limited in ultimate load test according to ISO 898-1
- Marked with 0 in front of strength class to indicate load limitation
- Dimensions (H x L x W): 25mm x 25mm x 6mm
- Weight: 0.1 kg
Key Features
- Shoulder screws designed to absorb lateral forces
- Ensures precise positioning of workpieces relative to each other
- Shank diameter varies for M5, M10, and M20 thread sizes
- Limited ultimate load capacity due to geometry
- Marked with a 0 in front of the strength class to indicate load limitation
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure correct torque and positioning.
Applications
- Mechanical assemblies requiring precise positioning and lateral force absorption
- Industrial machinery and equipment
- Automotive and aerospace components
- General engineering applications where shoulder screws are needed
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Plain finish allows for recycling and reuse of materials
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The WURTH Cheese Head Screw with Hexagon Socket Head and Shoulder ISO 7379 is available for immediate purchase, ideal for industrial and mechanical engineering applications.
