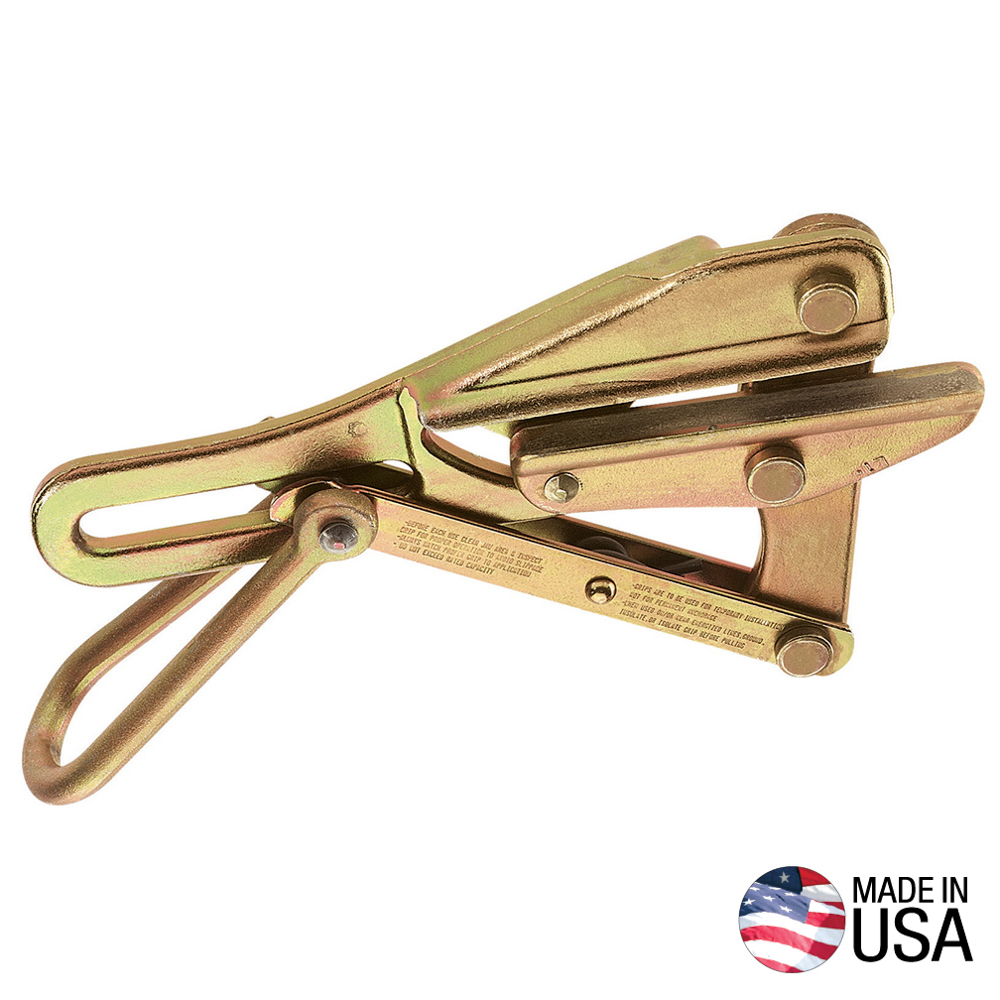

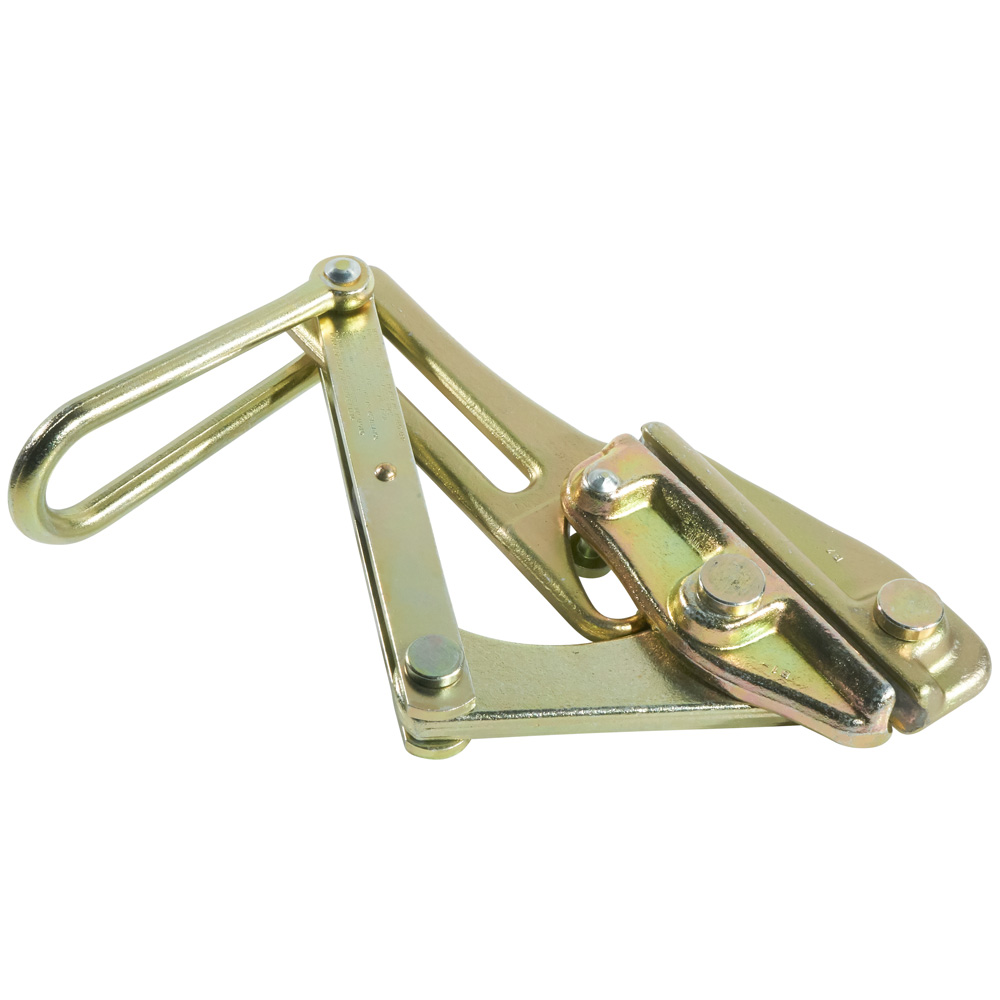

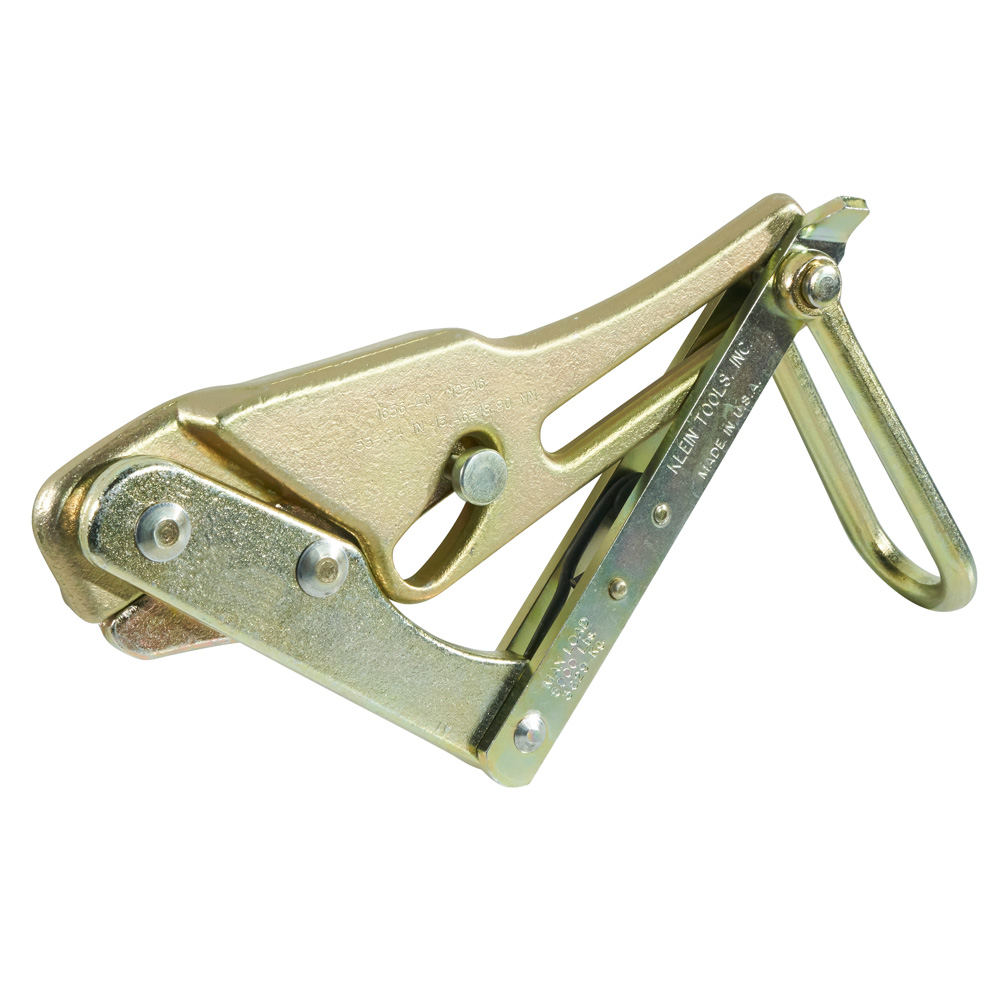

Chicago™ Grip for Bare Wire | 13 to 19 mm | Round Smooth Jaw Design | 3629 kg Load Capacity | @Each by Wattmaster
The Chicago™ Grip for Bare Wire is designed for efficient wire pulling, accommodating cable diameters from 13 to 19 mm. With a robust round smooth jaw design and a maximum safe load of 3629 kg, this grip is perfect for electrical contractors and utility workers. Made from durable drop-forged, heat-treated steel, it ensures reliability and safety during cable handling operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago™ Grip for Bare Wire | 13 to 19 mm | Round Smooth Jaw Design | 3629 kg Load Capacity | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1656-40
Alternatively Known As: Chicago Grip Bare Wire, Wire Pulling Grip, Cable Pulling Grip, Stranded Copper Cable Grip
Technical Specifications
- Cable Diameter: 13.46 to 18.8 mm (0.53'' to 0.74'')
- Maximum Safe Load: 3629 kg (8000 lb)
- Jaw Type: Round, smooth inside-jaw contour
- Jaw Length: 140 mm (5.5'')
- Material: Drop-forged, heat-treated steel
- Locking Handle: Yes
- Weight: 3.4 kg (7.4 lb)
- Suitable Cable Types: ACSR, AAC, Copper
- Dimensions (H x L x W): 50mm x 140mm x 140mm
- Weight: 3.4 kg
Key Features
- Round, smooth inside-jaw contour ideal for bare ACSR, aluminium, and stranded-copper cables
- Smooth jaws provide maximum contact and reduce cable deformation
- Jaw design reduces slippage for easier cable pulling
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Individually hand inspected and tested to rated load for quality and reliability
- Locking handle included for secure grip
- Made in the USA
Professional Installation Requirements
- Professional use recommended; ensure proper inspection and cleaning of jaws before use to avoid slippage. Use appropriate safety measures when working near live lines.
Applications
- Suitable for bare ACSR, aluminium, and stranded-copper cables
- Used in wire-pulling operations for electrical and utility installations
- Temporary cable pulling and handling in construction and maintenance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Enables safe and efficient cable installation, reducing environmental impact of rework
Warranty Information
Warranty details are subject to manufacturer terms; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Chicago™ Grip for Bare Wire 13 to 19 mm is available for immediate purchase, ideal for electrical contractors and utility workers requiring reliable cable pulling grips.
