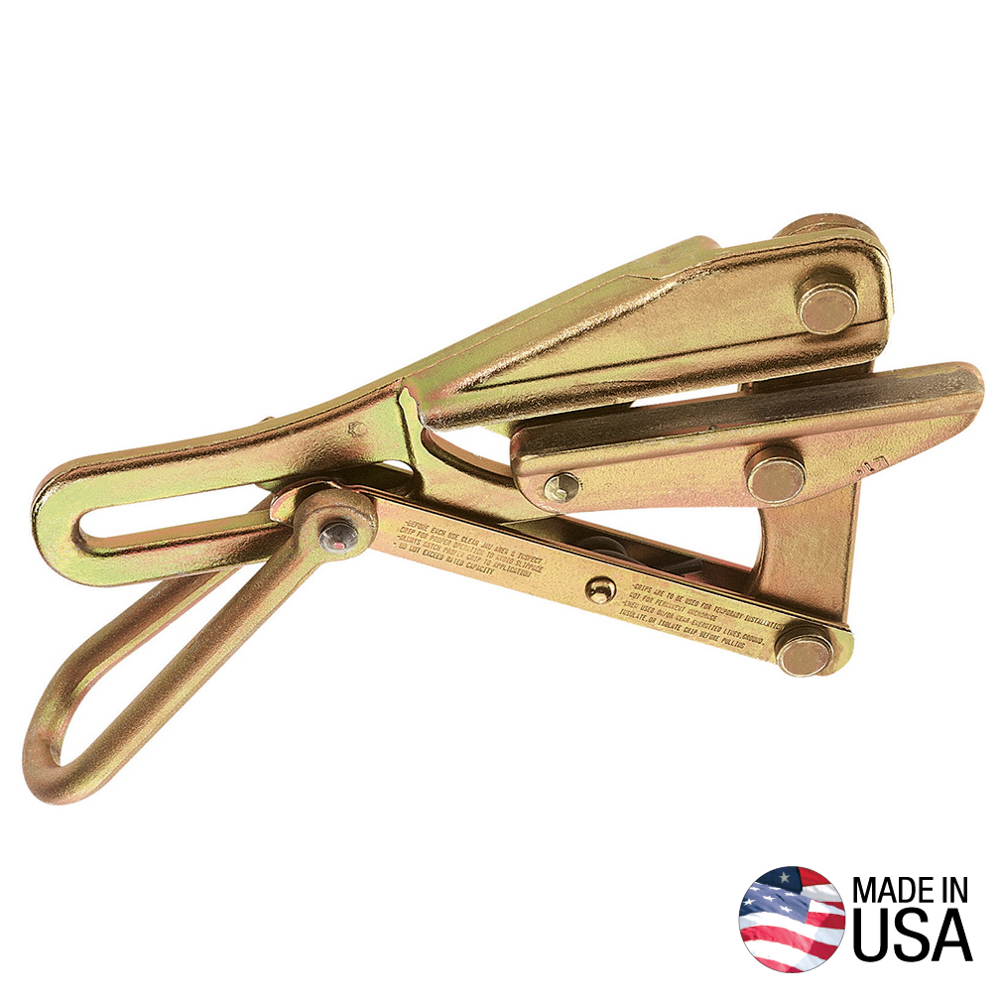

Chicago™ Grip for Bare Wire 22 to 24 mm | Round Smooth Inside-Jaw | 3629 kg Max Load | by Wattmaster
The Chicago™ Grip for Bare Wire 22 to 24 mm is designed for efficient wire pulling and cable installation, featuring a round smooth inside-jaw contour that minimizes conductor damage. With a maximum safe load of 3629 kg, this durable grip is perfect for professionals handling ACSR, aluminium, and stranded copper cables, ensuring secure and reliable performance on the job.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago™ Grip for Bare Wire 22 to 24 mm | Round Smooth Inside-Jaw | 3629 kg Max Load | by Wattmaster
Brand: Wattmaster
SKU: A-1656-60
Alternatively Known As: Wire Pulling Grip, Chicago Wire Grip, Cable Pulling Grip, Stranded Copper Cable Grip
Technical Specifications
- Cable Diameter: 21.84 to 24.38 mm (0.86'' to 0.96'')
- Maximum Safe Load: 3629 kg (8000 lb)
- Jaw Type: Round smooth inside-jaw contour
- Jaw Length: 140 mm (5.5'')
- Material: Drop-forged, heat-treated steel
- Locking Handle: Yes
- Weight: 3.5 kg (7.8 lb)
- Suitable Cable Types: ACSR, AAC, Copper
- Dimensions (H x L x W): 60mm x 140mm x 140mm
- Weight: 3.5 kg
Key Features
- Round, smooth inside-jaw contour ideal for bare ACSR, aluminium, and stranded-copper cables
- Smooth jaws provide maximum contact and reduce conductor damage
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Individually hand inspected and actuated for proper function
- Rigorously tested and pulled to rated load for quality and reliability
- Locking handle for secure grip
Professional Installation Requirements
- Professional use recommended; inspect grip and clean jaw area before each use to ensure proper operation and avoid slippage.
Applications
- Suitable for bare ACSR, aluminium, and stranded-copper cables
- Used in wire-pulling and cable installation tasks
- Temporary cable anchorage during electrical and construction work
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Enables safe and efficient cable installation, reducing environmental impact of rework
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Chicago™ Grip for Bare Wire 22 to 24 mm is available for immediate purchase, ideal for electrical contractors and professionals handling bare wire cable installations.
