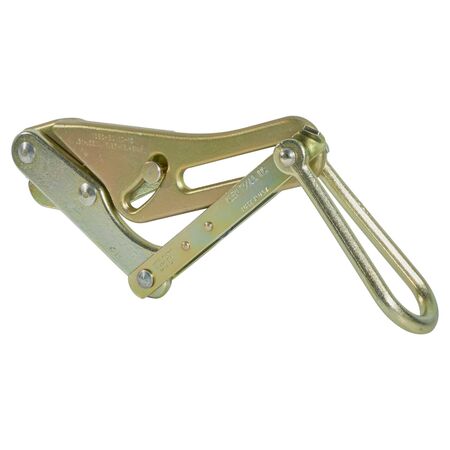

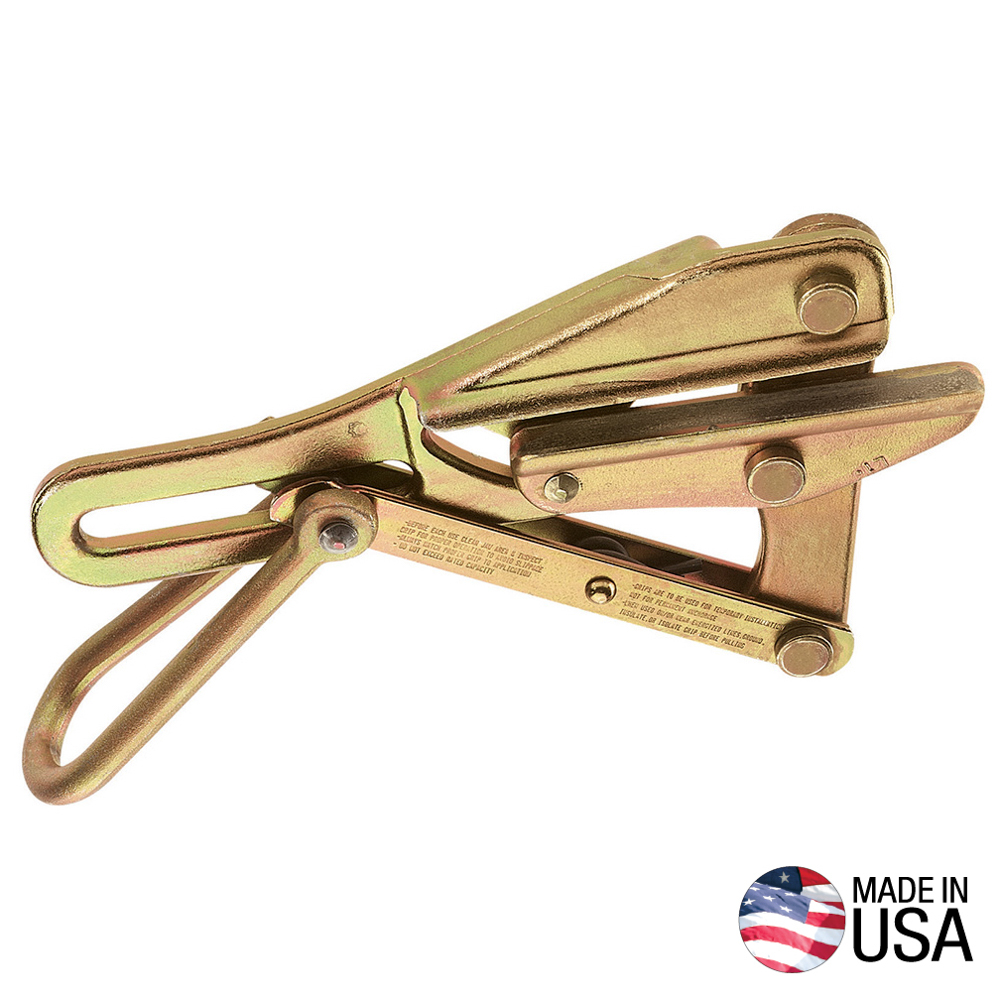

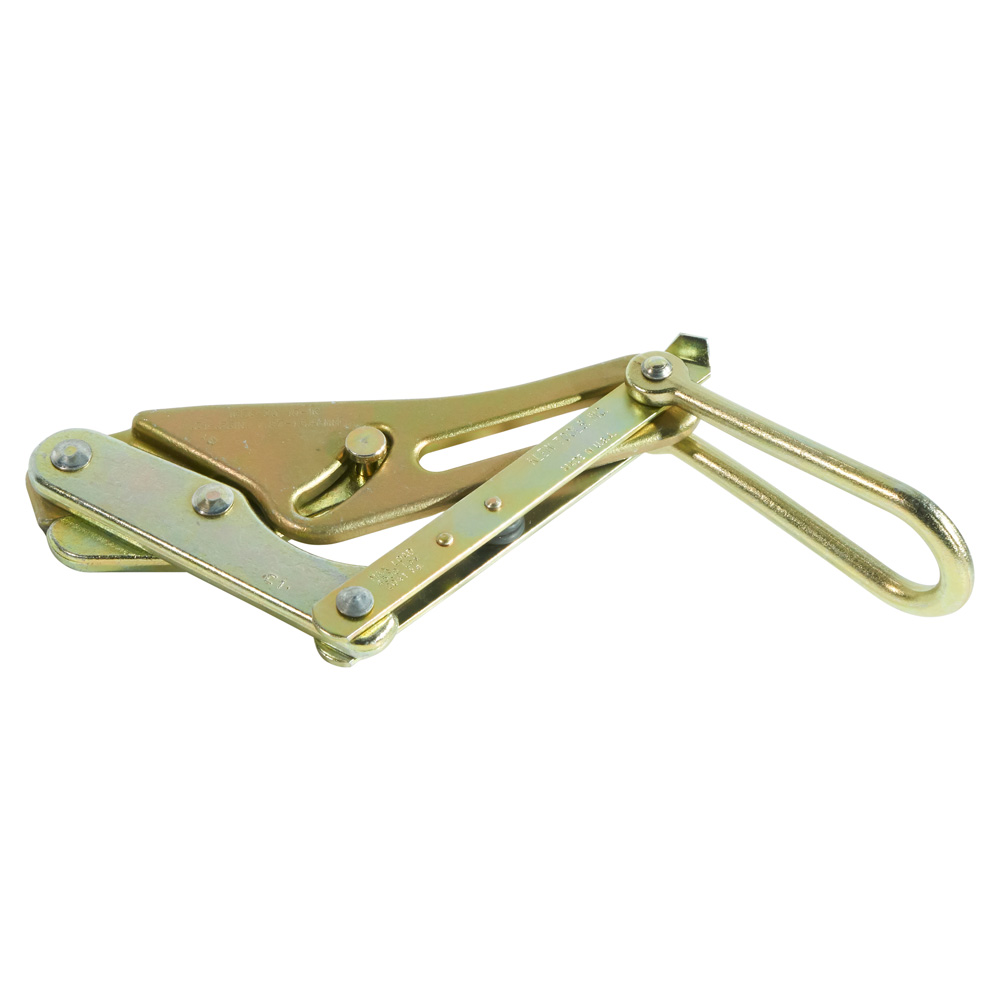

Chicago™ Grip for Bare Wire | 7.8 to 13 mm | Round Smooth Jaws | Locking Handle | by Wattmaster
The Chicago™ Grip for Bare Wire is designed for efficient wire pulling, accommodating cable diameters from 7.8 to 13 mm. With round, smooth jaws that minimize conductor damage and a secure locking handle, this grip is perfect for electrical contractors and utility workers. Built from durable, drop-forged steel, it ensures reliability and safety during installation tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago™ Grip for Bare Wire | 7.8 to 13 mm | Round Smooth Jaws | Locking Handle | by Wattmaster
Brand: Wattmaster
SKU: A-1656-30
Alternatively Known As: Wire Pulling Grip, Chicago Wire Grip, Cable Pulling Grip, Bare Wire Grip, Stranded Cable Grip
Technical Specifications
- Cable Diameter Range: 7.8 to 13.46 mm (0.31'' to 0.53'')
- Maximum Safe Load: 2041 kg (4500 lb)
- Jaw Type: Round
- Tooth Type: Smooth
- Jaw Length: 121 mm (4.75'')
- Material: Drop-forged, heat-treated steel
- Locking Handle: Yes
- Hot Latch: No
- Swing Latch: No
- Spring: No
- Dimensions (H x L x W): 50mm x 300mm x 120mm
- Weight: 1.5 kg
Key Features
- Round, smooth inside-jaw contour ideal for bare ACSR, aluminium, and stranded-copper cables
- Smooth jaws provide maximum contact and reduce conductor damage
- Jaw design reduces slippage for easier cable pulling
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Individually hand inspected and tested for quality and reliability
- Locking handle for secure grip
Professional Installation Requirements
- Should be used by trained professionals familiar with cable pulling techniques and safety standards. Proper inspection before use is essential to avoid slippage and ensure safety.
Applications
- Suitable for bare ACSR, aluminium, and stranded-copper cables
- Used in wire pulling for electrical and utility installations
- Temporary cable installation and pulling tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Enables efficient cable installation, reducing energy and resource use during electrical projects
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Chicago™ Grip for Bare Wire (7.8 to 13 mm) is available for immediate purchase, ideal for electrical contractors and utility workers requiring reliable wire-pulling grips.
