Chicago™ Grip for EHS Cable | Curved Jaw | Double 'V' Design | 8000 lb Load Capacity | @Each by Wattmaster

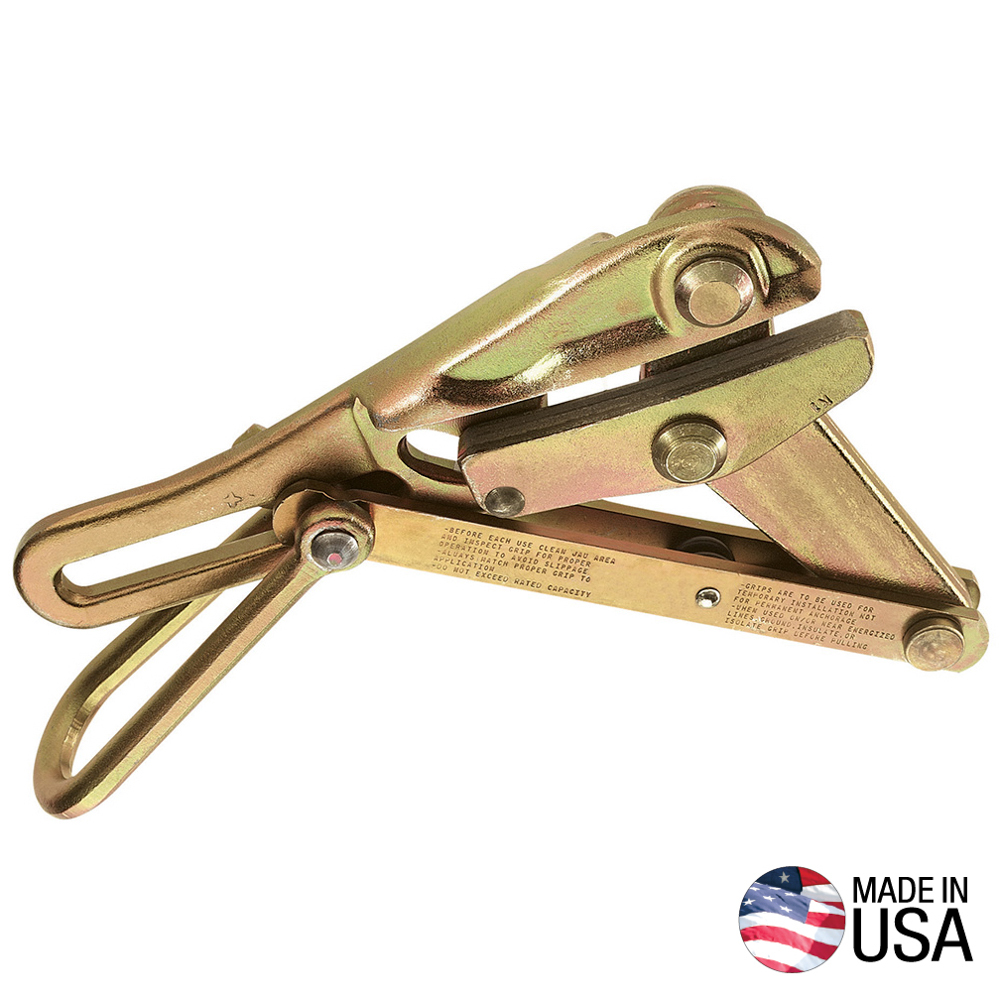

The Chicago™ Grip for EHS Cable features a curved jaw design with a double 'V' configuration, ensuring a secure grip while minimizing cable damage. Ideal for professional cable pulling and installation, this grip supports cable diameters from 0.218'' to 0.55'' and has a maximum safe load of 8000 lb. Built for durability and efficiency, it's perfect for trained professionals working with various cable types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago™ Grip for EHS Cable | Curved Jaw | Double 'V' Design | 8000 lb Load Capacity | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1684-74
Alternatively Known As: Chicago Style Cable Grip, Curved Jaw Wire Pulling Grip, EHS Cable Grip, Double V Jaw Grip
Technical Specifications
- Cable Diameter Range: 0.218'' to 0.55'' (5.54 to 13.97 mm)
- Jaw Type: Double V, Milled Curved
- Jaw Length: 5'' (127 mm)
- Maximum Safe Load: 8000 lb (3629 kg)
- Locking Handle: Yes
- Spring Loaded: Yes
- Suitable Cable Types: Aircraft, EHS, Messenger, Guy Strand
- Dimensions (H x L x W): 130mm x 127mm x 50mm
- Weight: 2.6 kg
Key Features
- Double 'V' milled curved jaw reduces slippage and damage to cable
- Locking handle keeps jaw open for easy placement with a hot stick
- Spring loaded for secure grip
- Suitable for cable diameters from 0.218'' to 0.55'' (5.54 to 13.97 mm)
- Maximum safe load of 8000 lb (3629 kg)
- Made in the USA
Professional Installation Requirements
- Should be used by trained professionals familiar with cable pulling techniques and safety standards.
Applications
- Use on aluminium, copper, weatherproof coated wire, PVC-covered conductors, messenger and guy strand
- Designed for pulling EHS (extra-high-strength) galvanised-steel cable
- Temporary cable installation and pulling applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Enables safe and efficient cable installation, reducing risk of damage and material waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Chicago™ Grip for EHS Cable, Curved Jaw is available for immediate purchase. Ideal for professional cable pulling and wire installation applications.
