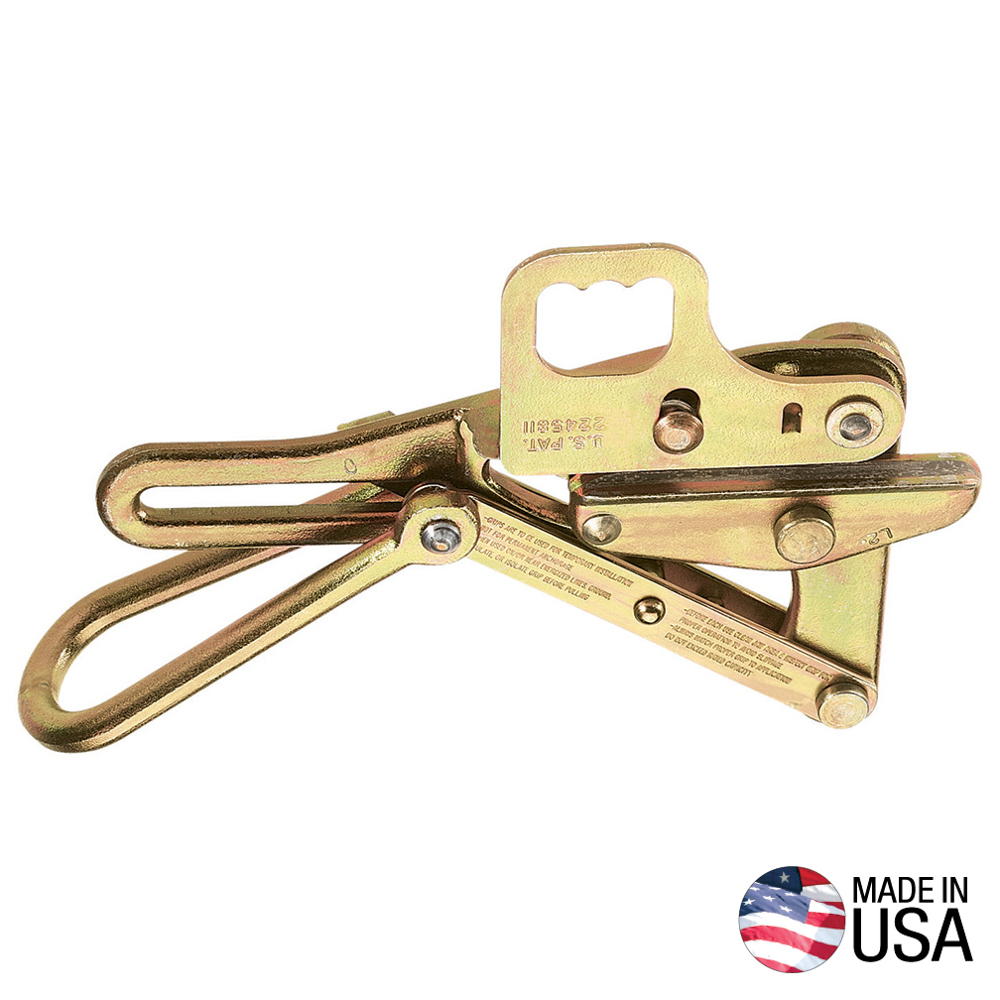

Chicago Grip w/Latch for Bare Conductors | 5.08 to 10.16 mm | Hot-Line Latch | Locking Handle | @Each by Wattmaster
The Chicago Grip w/Latch is designed for bare conductors ranging from 5.08 to 10.16 mm, making it ideal for wire pulling in electrical installations. With a round smooth inside jaw contour and a hot-line latch for safe handling, this grip ensures maximum contact and minimal cable deformation. Perfect for professionals in electrical and utility work, it supports efficient installation and maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago Grip w/Latch for Bare Conductors | 5.08 to 10.16 mm | Hot-Line Latch | Locking Handle | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1656-20H
Alternatively Known As: Wire Pulling Grip, Hot-Line Latch Grip, Chicago Style Wire Grip, Cable Pulling Grip
Technical Specifications
- Suitable for bare conductors with diameter 5.08 to 10.16 mm (0.2'' to 0.4'')
- Compatible cable types: Copper, ACSR, AAC
- Jaw type: Round smooth inside contour
- Jaw length: 102 mm (4 inches)
- Maximum safe load: 2041 kg (4500 lb)
- Hot latch included, swing latch and spring not included
- Locking handle included
- Dimensions (H x L x W): 50mm x 102mm x 100mm
- Weight: 1.43 kg
Key Features
- Round, smooth inside-jaw contour for maximum contact and minimal cable deformation
- Hot-line latch allows placement on cable with hot-line stick
- Latch closes automatically when stick is removed to prevent accidental disengagement
- Locking handle included for secure grip
- Tested and rated for a maximum safe load of 2041 kg (4500 lb)
- Made in the USA
Professional Installation Requirements
- Should be used by trained professionals familiar with electrical safety and wire pulling techniques; proper inspection before use is essential.
Applications
- Wire pulling and handling of bare conductors in electrical installations
- Suitable for copper, ACSR, and AAC cables
- Temporary installation use in electrical and utility work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Enables safe handling of electrical cables, supporting efficient installation and maintenance
Warranty Information
Warranty details are provided by the manufacturer; typically covers defects in materials and workmanship.
Available Now
The Wattmaster Chicago Grip with Latch for Bare Conductors up to 10 mm is available for immediate purchase, ideal for electrical contractors and utility workers handling wire pulling tasks.
