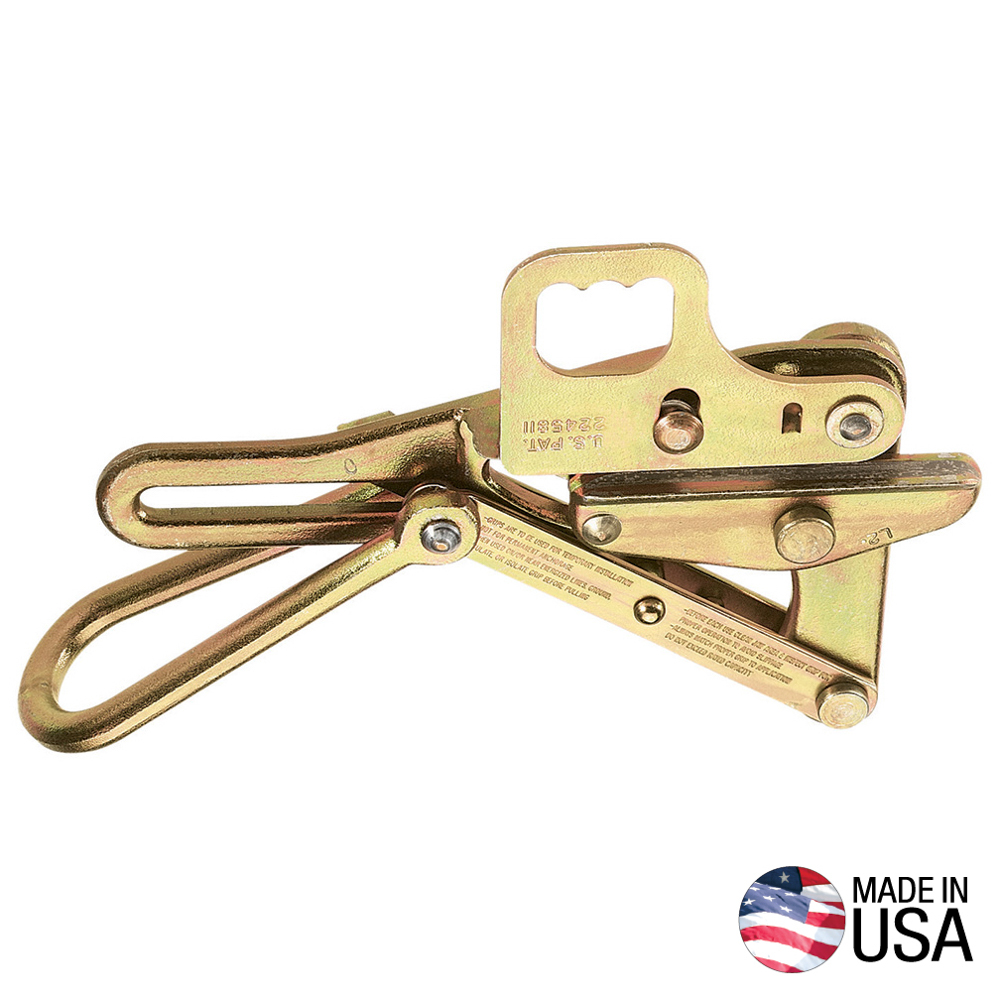

Chicago Grip™ with Latch | Hot-Line Cable Grip | Double V Jaw Type | Maximum Load 8000 lb | @Each by Wattmaster
The Chicago Grip™ with Latch is designed for secure cable pulling, featuring a double V jaw type and a maximum safe load of 8000 lb. Ideal for electrical contractors and utility workers, this grip ensures safety and reliability when handling steel stranded cables. With an automatic latch closure, it prevents accidental disengagement, making it a must-have for professional applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago Grip™ with Latch | Hot-Line Cable Grip | Double V Jaw Type | Maximum Load 8000 lb | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1684-5H
Alternatively Known As: Chicago Style Cable Grip, Hot-Line Cable Grip, Wire Pulling Grip with Latch, Steel Stranded Cable Grip
Technical Specifications
- Cable Diameter Range: 0.218'' to 0.55'' (5.54 to 13.97 mm)
- Material: Steel
- Jaw Type: Double V
- Jaw Length: 5'' (12.7 cm)
- Maximum Safe Load: 8000 lb (3629 kg)
- Hot Latch: Yes
- Swing Latch: No
- Spring: No
- Locking Handle: Yes
- Dimensions (H x L x W): 130mm x 127mm x 50mm
- Weight: 2.9 kg
Key Features
- Hot-line grips for steel stranded cable
- Latch closes automatically when hot-line stick is removed to prevent accidental disengagement
- Locking handle keeps jaw open for easy placement on cable with hot stick
- Double V jaw type for secure grip
- Designed for cable diameters from 0.218'' to 0.55'' (5.54 to 13.97 mm)
- Maximum safe load of 8000 lb (3629 kg)
- Made in the USA
Professional Installation Requirements
- Should be used by trained professionals familiar with hot-line grips and cable pulling safety procedures. Proper inspection and maintenance before use is required.
Applications
- Use on aluminium, copper, weatherproof coated wire, PVC-covered conductors
- Suitable for messenger and guy strand cables
- Temporary cable pulling and gripping in electrical and utility work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable steel construction ensures long product life reducing waste
- Reusable tool reduces need for disposable cable handling equipment
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Chicago Grip™ with Latch for 0.94 cm Cable is available for immediate purchase, ideal for electrical contractors and utility workers requiring safe and reliable cable pulling grips.
