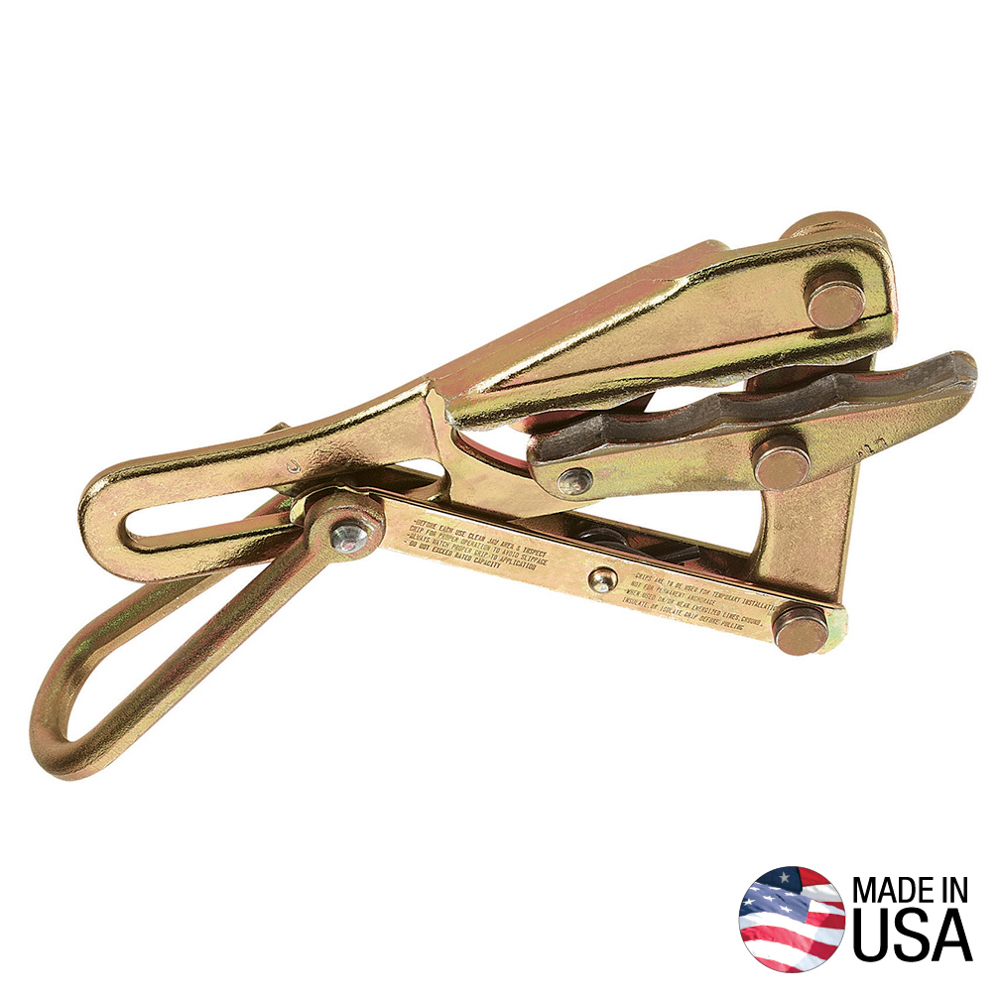

Chicago™ Grip for PVC-Covered Conductors | 20 mm | Serpentine Jaws & Locking Handle | 8000 lb Max Load | @Each by Wattmaster
The Chicago™ Grip for PVC-Covered Conductors is designed for efficient wire pulling in electrical installations, featuring serpentine jaws that allow for easy insertion of insulated conductors without stripping. Built from durable drop-forged, heat-treated steel, this grip supports a maximum load of 8000 lb, making it ideal for professional electricians and utility workers who demand reliability and safety in their tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chicago™ Grip for PVC-Covered Conductors | 20 mm | Serpentine Jaws & Locking Handle | 8000 lb Max Load | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1659-40
Alternatively Known As: Chicago Grip PVC Cable Puller, PVC-Covered Conductor Grip, Wire Pulling Grip for Insulated Cable
Technical Specifications
- Cable Diameter Range: 12.45 to 20.07 mm (0.49'' to 0.79'')
- Jaw Type: Round - Serpentine
- Jaw Length: 144.5 mm (5.688'')
- Maximum Safe Load: 3629 kg (8000 lb)
- Material: Drop-forged, heat-treated steel
- Spring: Yes
- Locking Handle: Yes
- Hot Latch: No
- Swing Latch: No
- Dimensions (H x L x W): 50mm x 145mm x 145mm
- Weight: 3.5 kg
Key Features
- Serpentine jaws allow insertion of insulated conductor without stripping insulation
- Round inside-jaw contour for secure grip
- Manufactured from drop-forged, heat-treated steel for durability
- Individually hand inspected and tested for quality and reliability
- Locking handle and spring mechanism for secure operation
- Maximum safe load of 8000 lb (3629 kg)
Professional Installation Requirements
- Use by trained professionals is recommended to ensure proper grip application and safety during wire pulling operations.
Applications
- Wire pulling for PVC-covered conductors in electrical installations
- Temporary installation for cable handling and pulling
- Suitable for use in construction, electrical maintenance, and utility work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces cable damage by eliminating the need to strip insulation, minimizing waste
- Durable construction extends product life, reducing replacement frequency
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Chicago™ Grip for PVC-Covered Conductors 20 mm by Wattmaster is available for immediate purchase, ideal for electrical contractors and utility workers requiring reliable wire pulling grips.
