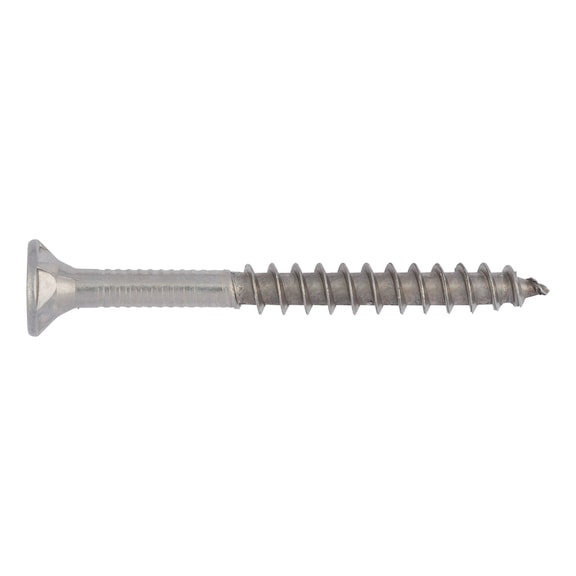

Chipboard Screw A2 ASSY® 3.0 | Corrosion-Resistant Stainless Steel | Countersunk Milling Pocket Head | @Pack of 100 | by Wurth
Chipboard screw A2 ASSY® 3.0 is designed for structural woodwork, featuring corrosion-resistant A2 stainless steel and a countersunk milling pocket head for seamless installation. Ideal for outdoor construction projects, this screw minimizes wood damage and ensures strong connections without splitting. Perfect for professionals seeking reliable fastening solutions in timber panel construction and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chipboard Screw A2 ASSY® 3.0 | Corrosion-Resistant Stainless Steel | Countersunk Milling Pocket Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 180106140
Alternatively Known As: Wood screw, Stainless steel chipboard screw, Countersunk wood screw, AW drive screw, Structural wood screw
Technical Specifications
- Nominal diameter (d): 6 mm
- Length (l): 140 mm
- Thread length (lg): 70 mm
- Head type: Countersunk milling pocket head
- Head diameter (d h): 12 mm
- Head height (k): 4.4 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Material: Stainless steel A2 (1.4301; 1.4567)
- Surface: Plain
- Min./max. screw-in angle: 0-90 Degree
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 140mm x 12mm
- Weight: 0.05 kg
Key Features
- A2 stainless steel for corrosion resistance
- Partial thread with wood screw thread design
- Milling pocket head for exceptional countersinking
- AW drive for excellent force transmission and quick positioning
- Joins wood without splitting or cracking
- Shank milling cutter reduces insertion torque
- Ring tip reduces wood splitting and blow-outs
- Asymmetrical single-start thread for faster screwing and higher tensile strength
- Minimal damage to coated wood materials
- Low screw-in torque and high mechanical strength
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building codes and optimal fastening performance.
Applications
- Structural woodwork
- Element construction
- Timber panel construction
- Metal wood connections
- Transport anchor
- Constructing fences, balconies, walkways, outdoor playground equipment
Standards & Compliance
- AS/NZS 4785 – Wood Screws and Fasteners (commonly referenced for wood screw standards)
Environmental Benefits
- Made from corrosion-resistant stainless steel for long product life
- Reduces wood damage and waste during installation
- RoHS-compliant, ensuring no hazardous substances
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth Chipboard Screw A2 ASSY® 3.0 100 PCS is available for immediate purchase, ideal for structural woodwork and outdoor construction projects.
