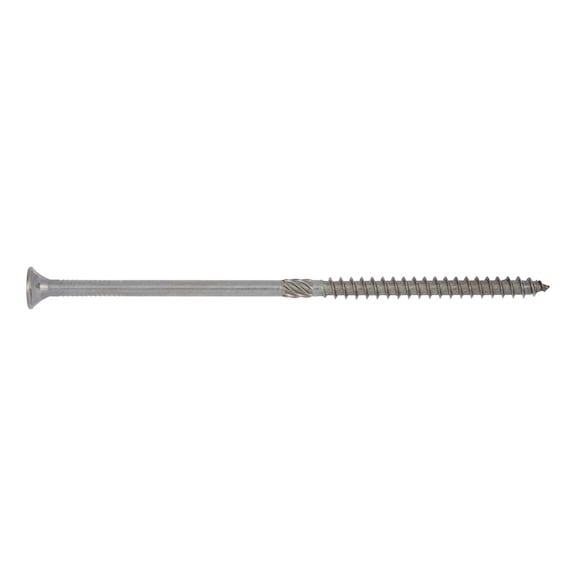

Chipboard Screw A2 ASSY® | 8mm Diameter | Countersunk Head | AW Drive | @Pack of 75 | by Wurth
Chipboard screw A2 ASSY® is designed for reliable wood joining with an 8mm diameter and countersunk head. Ideal for timber construction and outdoor applications, it features a partial thread and AW drive for exceptional power transmission. With corrosion-resistant stainless steel and a ring tip to minimize wood splitting, this screw ensures durability and performance in various structural projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chipboard Screw A2 ASSY® | 8mm Diameter | Countersunk Head | AW Drive | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 180180280
Alternatively Known As: Wood screw, Stainless steel chipboard screw, Timber screw, Countersunk wood screw, AW drive screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 280 mm
- Thread length: 100 mm
- Head type: Countersunk milling pocket head
- Head diameter: 15 mm
- Head height: 4.6 mm
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Single start thread
- Core diameter: 5 mm
- Shape of tip: Tip with ring thread
- Angle of the tip: 30 degrees
- Material: Stainless steel A2
- Surface: Plain
- Min./max. screw-in angle: 0-90 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board ply wood (BSP), Hardwood, LVL
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.6mm x 280mm x 15mm
- Weight: 0.15 kg
Key Features
- A2 stainless steel, partial thread, milling pocket, AW drive
- Joins wood without splitting or cracking
- Milling pocket for exceptional countersinking
- Suitable for wood and fittings
- Minimum damage to coated wood materials
- Fewer chips on the surface
- Shank milling cutter reduces force and torque
- Asymmetrical single-start thread for faster and higher tensile strength
- Low screw-in torque and high mechanical strength
- Wide thread pitch (5.0-12.0 mm)
- AW drive for greater power and excellent force transmission
- Quick positioning and secure settling of the screw
- Ring tip reduces wood splitting and blow-outs
- Corrosion-resistant austenitic stainless steel (1.4301; 1.4567)
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building codes and optimal performance.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Element construction
- Timber panel construction
- Timber construction
- Wet areas
- Play equipment
- Outdoors
- Board walk
- Balcony
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion-resistant stainless steel extends product life reducing waste
- Suitable for sustainable timber constructions
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Chipboard Screw A2 ASSY® 3.0 75 PCS is available now for immediate purchase. Ideal for timber construction, outdoor structures, and play equipment.
