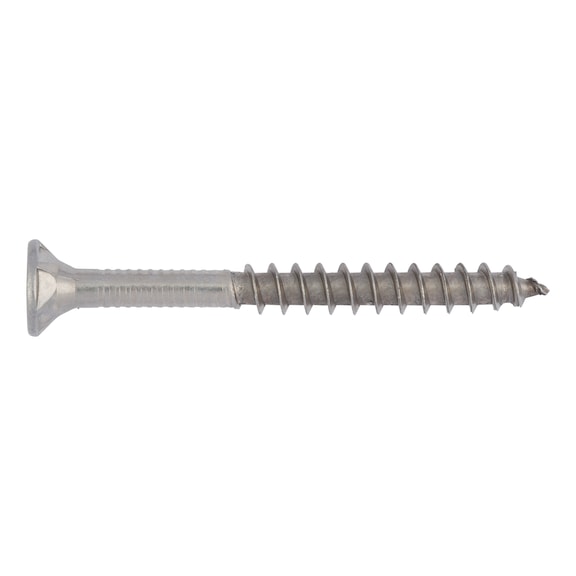

Chipboard Screw A2 ASSY® | 8mm Diameter | Countersunk Milling Pocket | AW Drive | @Pack of 75 | by Wurth
Chipboard screws A2 ASSY® are designed for seamless wood joining without splitting or cracking. With an 8mm diameter and a countersunk milling pocket head, these screws ensure exceptional countersinking and minimal damage to coated wood materials. Ideal for timber construction, outdoor play equipment, and structural woodwork, they offer low screw-in torque and high mechanical strength for reliable fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chipboard Screw A2 ASSY® | 8mm Diameter | Countersunk Milling Pocket | AW Drive | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 180180100
Alternatively Known As: Wood screw, Stainless steel chipboard screw, Countersunk wood screw, AW drive screw, Timber construction screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 100 mm
- Thread length: 60 mm
- Head type: Countersunk milling pocket head
- Head diameter: 15 mm
- Head height: 4.6 mm
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Core diameter: 5 mm
- Tip shape: Tip with ring thread
- Tip angle: 30 Degree
- Material: Stainless steel A2
- Surface: Plain
- Min./max. screw-in angle: 0-90 Degree
- Suitable materials: Wood, Derived timber product, Softwood, Board ply wood (BSP), Hardwood, LVL
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.6mm x 100mm x 15mm
- Weight: 0.05 kg
Key Features
- A2 stainless steel, partial thread, milling pocket, AW drive
- Joins wood without splitting or cracking
- Milling pocket for exceptional countersinking
- Suitable for wood and fittings
- Minimum damage to coated wood materials
- Fewer chips on the surface
- Shank milling cutter reduces force and torque
- Asymmetrical single-start thread for faster and higher tensile strength
- Low screw-in torque and high mechanical strength
- Wide thread pitch: 5.0-12.0 mm
- AW drive for greater power and excellent force transmission
- Quick positioning and secure settling of the screw
- Ring tip reduces wood splitting and blow-outs
- Material: Corrosion-resistant austenitic stainless steel (1.4301; 1.4567)
- RoHS-compliant
Professional Installation Requirements
- Professional installation recommended to ensure correct screw selection and secure fastening in timber applications.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Element construction
- Timber panel construction
- Timber construction
- Wet areas
- Play equipment
- Outdoors
- Board walk
- Balcony
Standards & Compliance
- AS/NZS 4785 – Timber fasteners
Environmental Benefits
- Corrosion-resistant stainless steel extends product life reducing waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Chipboard Screw A2 ASSY® 3.0 75 PCS is available now for immediate purchase. Ideal for timber construction, outdoor play equipment, and structural woodwork.
