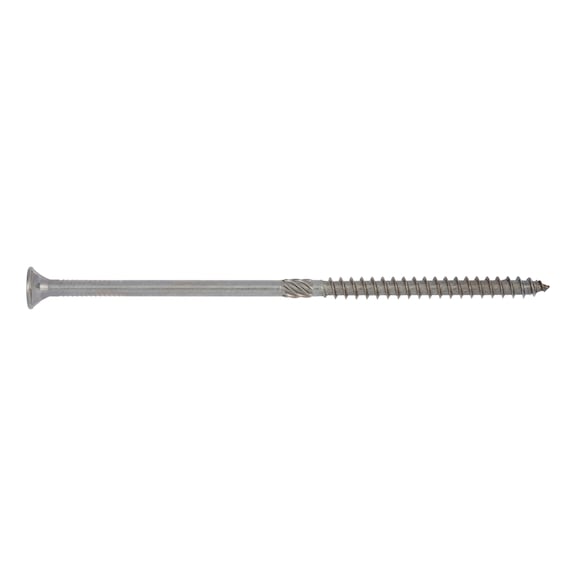

Chipboard Screw A2 ASSY® | 8mm Diameter | Countersunk Milling Pocket Head | Corrosion-Resistant | @Pack of 75 | by Wurth
Chipboard screw A2 ASSY® is designed for reliable fastening in timber construction and outdoor applications. With an 8mm diameter and a countersunk milling pocket head, it ensures minimal splitting and cracking of wood. Made from corrosion-resistant A2 stainless steel, this screw is perfect for structural woodwork and offers exceptional performance in wet areas, making it ideal for both professional and DIY projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chipboard Screw A2 ASSY® | 8mm Diameter | Countersunk Milling Pocket Head | Corrosion-Resistant | @Pack of 75 | by Wurth
Brand: Wurth
SKU: 180180180
Alternatively Known As: Wood screw, Stainless steel chipboard screw, Countersunk wood screw, Timber screw, Outdoor wood screw
Technical Specifications
- Nominal diameter: 8 mm
- Length: 180 mm
- Thread length: 80 mm
- Head type: Countersunk milling pocket head
- Head diameter: 15 mm
- Head height: 4.6 mm
- Internal drive: AW40
- Thread type: Wood screw thread
- Thread design: Partial thread
- End milling cutter: Yes
- Thread form: Single start thread
- Core diameter: 5 mm
- Shape of tip: Tip with ring thread
- Angle of the tip: 30 Degree
- Material: Stainless steel A2
- Surface: Plain
- Min./max. screw-in angle: 0-90 Degree
- Suitable materials: Wood, Derived timber product, Softwood, Board ply wood (BSP), Hardwood, LVL
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.6mm x 180mm x 15mm
- Weight: 0.15 kg
Key Features
- A2 stainless steel, partial thread, milling pocket, AW drive
- Joins wood without splitting or cracking
- Milling pocket for exceptional countersinking
- Suitable for wood and fittings
- Minimum damage to coated wood materials
- Fewer chips on the surface
- Shank milling cutter reduces force and torque
- Asymmetrical single-start thread for faster and higher tensile strength
- Low screw-in torque with high mechanical strength
- Wide thread pitch (5.0-12.0 mm)
- AW drive for greater power and excellent force transmission
- Quick positioning and secure settling of the screw
- Ring tip reduces wood splitting and blow-outs
- Special horizontal ring contains blow-outs when screwing
- Corrosion-resistant austenitic stainless steel (1.4301; 1.4567)
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and structural integrity.
Applications
- Façades
- Terrace
- Fence
- Structural woodwork
- Element construction
- Timber panel construction
- Timber construction
- Wet areas
- Play equipment
- Outdoors
- Board walk
- Balcony
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion-resistant stainless steel extends product life reducing waste
- Suitable for sustainable timber constructions
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Chipboard Screw A2 ASSY® 3.0 75 PCS is available for immediate purchase, ideal for timber construction, outdoor structures, and wood panel applications.
