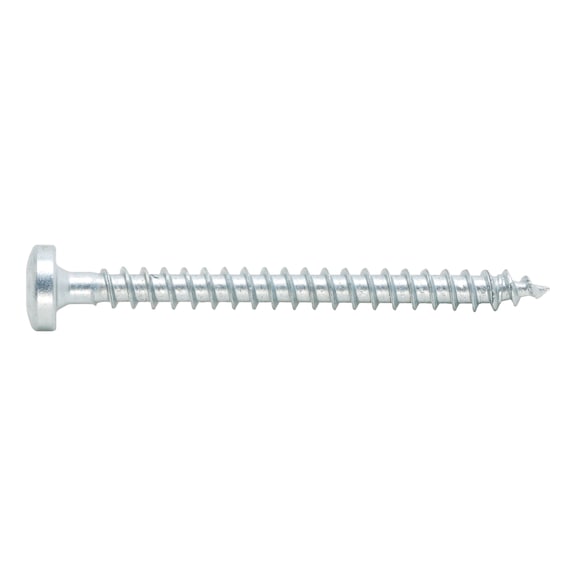

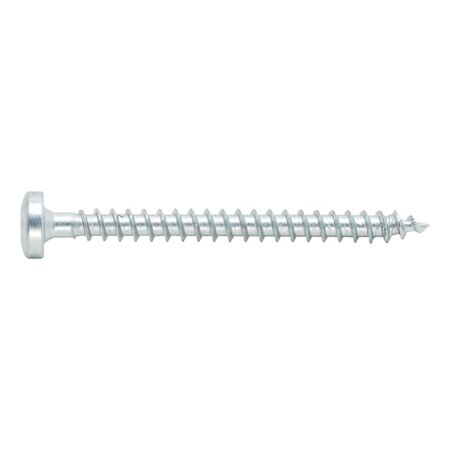

Chipboard Screw ASSY 30 | Zinc Plated | Pan Head | AW30 Drive | @Pack of 100 | by Wurth
The ASSY 30 chipboard screw is designed for universal fastening in structural woodwork, featuring a zinc plated finish and a pan head for secure installation. With an AW30 drive and asymmetric thread for faster screwing, it's perfect for professionals seeking reliability and efficiency in wood and derived timber products.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chipboard Screw ASSY 30 | Zinc Plated | Pan Head | AW30 Drive | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153060050
Alternatively Known As: Chipboard screw, Wood screw, Zinc plated wood screw, Pan head screw, AW30 drive screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 50 mm
- Head type: Pan head
- Head diameter: 12 mm
- Head height: 4 mm
- Internal drive: AW30
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 46 mm
- Core diameter: 3.9 mm
- Tip shape: Tip with ring thread
- Tip angle: 20 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 7.452 g
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4mm x 50mm x 12mm
- Weight: 0.0075 kg
Key Features
- Specially developed for securing cup connectors in KALTSCHMELZ® anchors
- Asymmetric thread for faster screwing and low screw-in torque
- High over-turning force and faster screwing than conventional chipboard screws
- Single-flight thread with AW drive for optimum force transmission
- Very good snug fit and fast location with secure screw bit engagement
- Minimal wobbling and no damage to surface coating
- Ring thread reduces wood splitting and blow-outs
- Only 5 bit sizes cover diameters from 3.0 to 12.0 mm
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Universal fastening in structural woodwork
- Element construction
- Metal plate to wood connections
- Roofing applications
- Suitable for board ply wood (BSP), wood, derived timber products, hardwood, LVL, softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Comes with Wurth standard product warranty against manufacturing defects.
Available Now
Wurth ASSY 30 zinc plated blue chipboard screw 6x50mm is available for immediate purchase, ideal for structural woodwork and general fastening applications.
