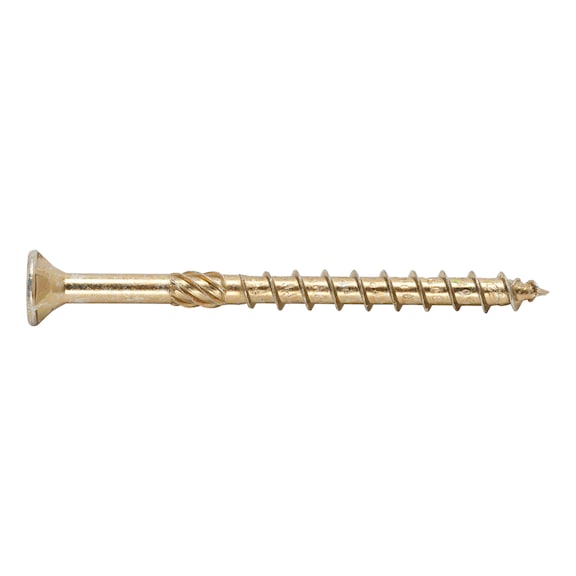

Chipboard Screws ASSY® 3.0 | Zinc-Plated Yellow Finish | Countersunk Head | AW Drive | @Pack of 50 | by Wurth
Chipboard screws ASSY® 3.0 feature a durable zinc-plated yellow finish and a countersunk head design, making them ideal for furniture construction and carpentry. With an AW drive for optimal power transmission and a partial thread for reduced wood splitting, these screws are perfect for various timber applications, ensuring strong and reliable fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Chipboard Screws ASSY® 3.0 | Zinc-Plated Yellow Finish | Countersunk Head | AW Drive | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 170310160
Alternatively Known As: Chipboard screws, Wood screws, Zinc plated screws, Yellow coated screws, Countersunk wood screws, AW drive screws
Technical Specifications
- Nominal diameter: 10 mm
- Length: 160 mm
- Thread length: 100 mm
- Head type: Countersunk with milling pockets
- Head diameter: 18.5 mm
- Head height: 5.5 mm
- Internal drive: AW40
- Thread type: Wood screw thread, partial thread
- End milling cutter: Yes
- Thread form: Coarse thread
- Core diameter: 6.3 mm
- Tip shape: Tip with counter thread
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated yellow
- Min/max screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood (BSP), wood, derived timber products, hardwood, LVL, softwood
- Additional accessory: Bit lock
- Screw approval: ETA-11/0190
- Dimensions (H x L x W): 5.5mm x 160mm x 18.5mm
- Weight: 0.15 kg
Key Features
- Zinc-plated steel with yellow finish for corrosion resistance
- Partial thread with coarse wood screw thread design
- Countersunk head with milling pockets for minimal surface damage
- AW drive for optimum power transmission and fast location
- Asymmetric thread for faster screwing and low torque
- End milling cutter reduces screw-in force and protects tools
- Ring/mating thread reduces wood splitting and blow-outs
- Suitable for solid wood, laminated beams, CLT, timber veneer, OSB, and chipboard
- Bit lock accessory included
- Screw requiring approval with ETA-11/0190
Professional Installation Requirements
- Recommended installation by professionals or skilled tradespeople using appropriate AW40 drive tools for optimal fastening and safety.
Applications
- Furniture construction
- Interior fittings
- Carpentry
- Rafter insulation
- Element construction
- Timber construction
- Timber panel construction
- Structural woodwork
- Universal use in wood and derived timber products
Standards & Compliance
- AS/NZS 4785 – Wood Screws and Nails (commonly referenced for wood fasteners)
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Efficient screwing reduces energy and tool wear
- Minimized wood splitting preserves timber integrity
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth ASSY® 3.0 Zinc-Plated Yellow Chipboard Screws 50 PCS are available for immediate purchase, ideal for furniture, carpentry, and timber construction applications.
