Circlip 25 PCS | Stainless Steel | DIN 471 Compliant | RoHS Certified | by Wurth
Circlip 25 PCS made from durable stainless steel is designed for secure shaft retention in mechanical assemblies. Compliant with DIN 471 and RoHS certified, these circlips are perfect for industrial machinery and automotive applications, ensuring long-lasting performance and environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip 25 PCS | Stainless Steel | DIN 471 Compliant | RoHS Certified | by Wurth
Brand: Wurth
SKU: 489016
Alternatively Known As: Snap ring, retaining ring, shaft circlip, stainless steel circlip
Technical Specifications

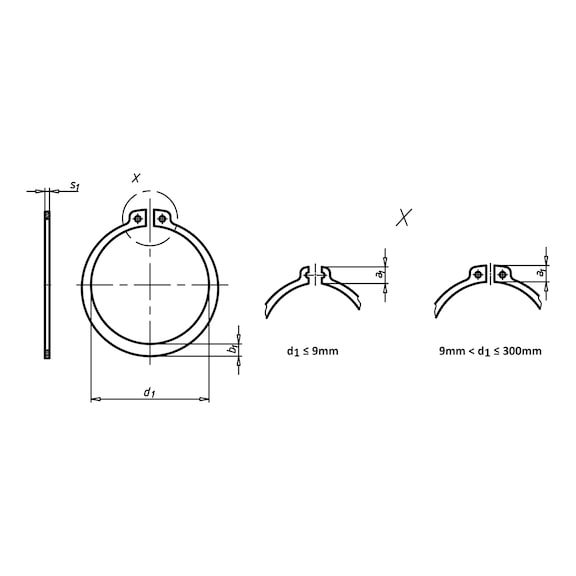

- Suitable for shafts: 6 mm
- Suitable for groove diameter: 5.7 mm
- Internal diameter (d1): 5.6 mm
- Eye width (a1): 2.7 mm
- Width (b1): 1.3 mm
- Thickness (s1): 0.7 mm
- Standards: DIN 471
- Design: Standard design
- Material: Stainless steel, 1.4122
- Surface: Plain
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 6mm x 6mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel 1.4122 for corrosion resistance
- Standard design compliant with DIN 471
- Suitable for shafts with 6 mm diameter
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fit and function.
Applications
- Mechanical assemblies requiring secure shaft retention
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Circlip 25 PCS is available for immediate purchase, ideal for industrial and mechanical shaft retention applications.
