Trade Discount 20%
Circlip 5 PCS | Stainless Steel | DIN 471 Compliant | RoHS Certified | by Wurth

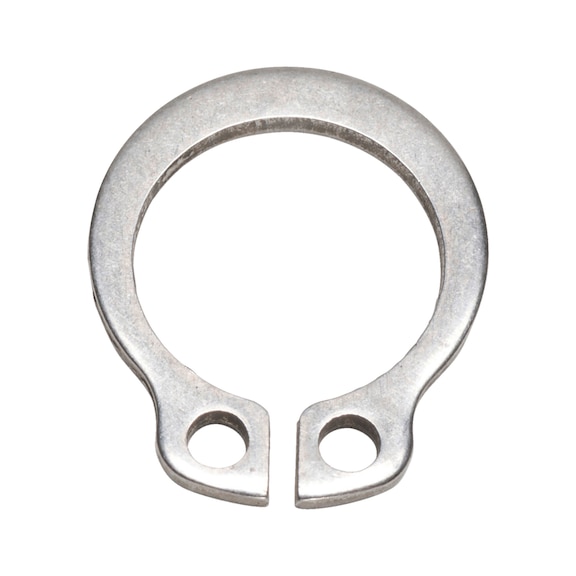

Circlip 5 PCS made from durable stainless steel is designed for secure shaft retention in mechanical assemblies. Compliant with DIN 471 standards and RoHS certified, these circlips are perfect for industrial machinery, automotive, and engineering applications, ensuring long-lasting performance and environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip 5 PCS | Stainless Steel | DIN 471 Compliant | RoHS Certified | by Wurth
Brand: Wurth
SKU: 4890118
Alternatively Known As: Retaining ring, snap ring, shaft circlip, stainless steel circlip
Technical Specifications
- Suitable for shafts: 18 mm
- Suitable for groove diameter: 17 mm

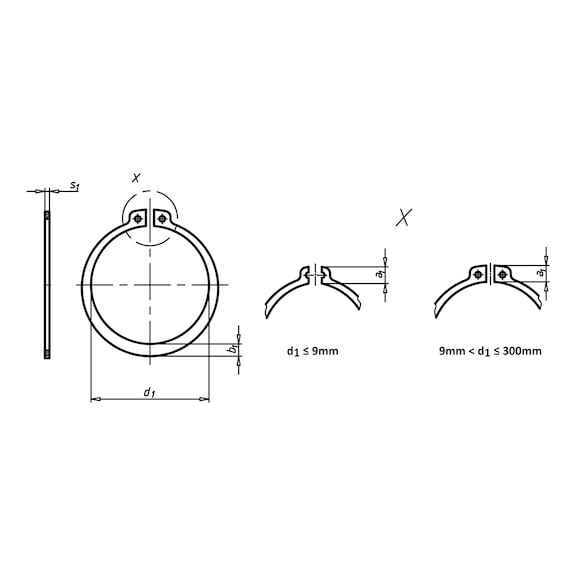

- Internal diameter (d1): 16.5 mm
- Eye width (a1): 3.9 mm
- Width (b1): 2.4 mm
- Thickness (s1): 1.2 mm
- Standards: DIN 471
- Design: Standard design
- Material: Stainless steel, 1.4122
- Surface: Plain
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.4mm x 18mm x 18mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel 1.4122 for corrosion resistance
- Standard design compliant with DIN 471
- Suitable for shafts of 18 mm diameter
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper fit and safety.
Applications
- Mechanical assemblies requiring secure shaft retention
- Industrial machinery and equipment
- Automotive and engineering applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable stainless steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Circlip 5 PCS is available for immediate purchase, ideal for mechanical and industrial applications requiring secure shaft retention.
