Trade Discount 21%

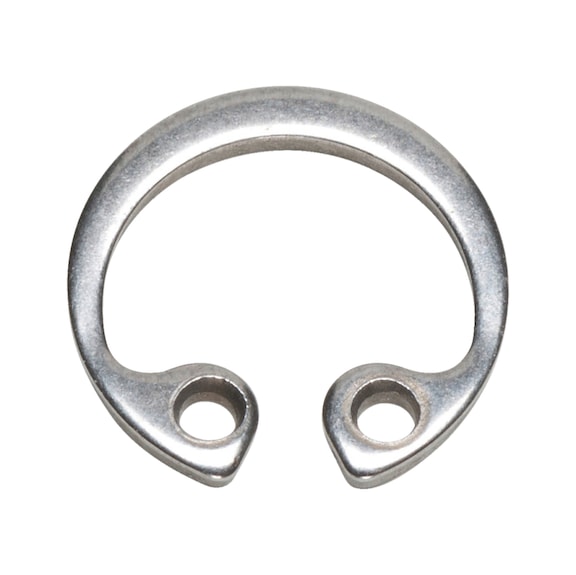

Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | Plain Surface Finish | @Pack of 5 | by Wurth
The Circlip for Bore Hole Shape J DIN 472 is crafted from durable stainless steel, featuring a plain surface finish and designed for secure axial positioning in mechanical assemblies. Ideal for industrial machinery and automotive components, this circlip ensures reliable performance and compliance with RoHS standards, making it a perfect choice for general engineering and maintenance tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 4890232
Alternatively Known As: DIN 472 Circlip, Bore Hole Circlip, J Shape Circlip, Stainless Steel Retaining Ring
Technical Specifications
- Suitable for holes: 32 mm
- Suitable for groove diameter: 33.7 mm
- Outer diameter (d1): 34.4 mm
- Eye width (a1): 5.4 mm
- Width (b1): 3.2 mm
- Thickness (s1): 1.2 mm
- Material: Stainless steel, 1.4122 (≤100 mm diameter), 1.4310 (>100 mm diameter)
- Surface: Plain
- Design: Standard J shape
- Standards: DIN 472
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.2mm x 34.4mm x 3.2mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel grades 1.4122 and 1.4310 depending on diameter
- Plain surface finish
- Standard J shape design according to DIN 472
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with circlip fitting to ensure proper seating and safety.
Applications
- Mechanical assemblies requiring secure axial positioning of components on shafts or in bores
- Industrial machinery and automotive components
- General engineering and maintenance tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
Wurth Circlip For Bore Hole Shape J DIN 472 Plain Stainless Steel 5 PCS is available for immediate purchase, ideal for mechanical and industrial applications.
