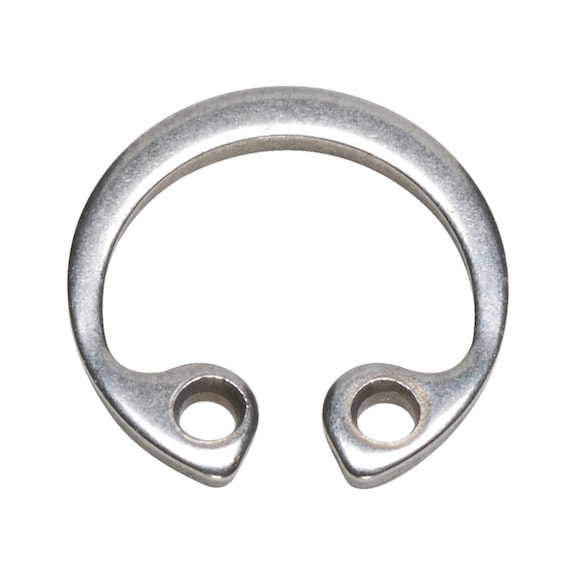

Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | Plain Surface Finish | @Pack of 5 | by Wurth
Circlip for Bore Hole Shape J DIN 472 is crafted from durable stainless steel, ensuring a secure fit for mechanical assemblies. With a plain surface finish and RoHS compliance, it's perfect for industrial machinery and automotive applications. Designed for trained personnel, this circlip guarantees reliable axial positioning of components in bores and on shafts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | Plain Surface Finish | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 4890230
Alternatively Known As: DIN 472 Circlip, Bore Hole Circlip, J Form Circlip, Stainless Steel Retaining Ring
Technical Specifications
- Suitable for holes: 30 mm
- Suitable for groove diameter: 31.4 mm
- Outer diameter (d1): 32.1 mm
- Eye width (a1): 4.8 mm
- Width (b1): 3 mm
- Thickness (s1): 1.2 mm
- Standards: DIN 472
- Material: Stainless steel, 1.4122
- Surface: Plain
- Design: Standard design
- Form: J
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 4.8mm x 32.1mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel grades 1.4122 (for ≤100 mm diameter) and 1.4310 (for >100 mm diameter)
- Plain surface finish
- Standard J form design according to DIN 472
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate circlip pliers to ensure secure fitting and safety.
Applications
- Mechanical assemblies requiring secure axial positioning of components on shafts or in bores
- Industrial machinery and automotive applications
- General engineering and maintenance tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Circlip For Bore Hole Shape J DIN 472 Plain Stainless Steel 5 PCS is available for immediate purchase, ideal for mechanical and industrial applications.
