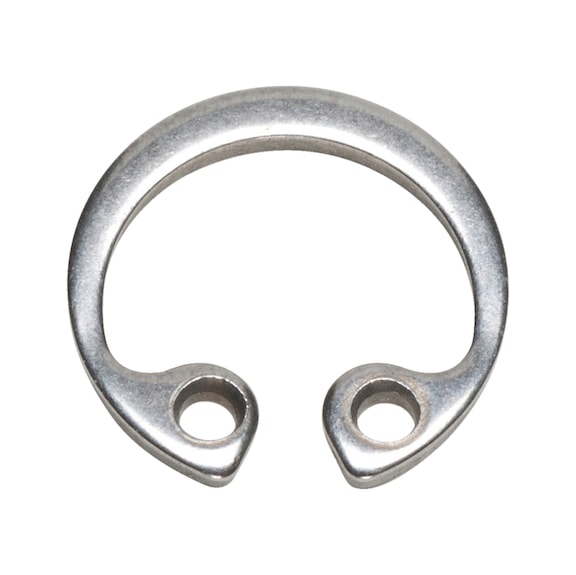

Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | Plain Surface | by Wurth
The Circlip for Bore Hole Shape J DIN 472 is crafted from durable stainless steel, ensuring long-lasting performance in mechanical assemblies. With a plain surface finish and RoHS compliance, it's perfect for secure axial positioning in industrial machinery and automotive components. Designed for easy installation by qualified technicians, this circlip meets the highest standards for reliability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | Plain Surface | by Wurth
Brand: Wurth
SKU: 4890242
Alternatively Known As: DIN 472 Circlip, Bore Hole Circlip, J Form Circlip, Stainless Steel Retaining Ring
Technical Specifications
- Suitable for holes: 42 mm
- Suitable for groove diameter: 44.5 mm
- Outer diameter (d1): 45.5 mm
- Eye width (a1): 5.9 mm
- Width (b1): 4.1 mm
- Thickness (s1): 1.75 mm
- Standards: DIN 472
- Material: Stainless steel, 1.4122
- Surface: Plain
- Design: Standard design
- Form: J
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.1mm x 45.5mm x 5.9mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel grades 1.4122 (≤100 mm diameter) and 1.4310 (>100 mm diameter)
- Plain surface finish
- Standard J form design according to DIN 472
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with circlip fitting to ensure proper seating and safety.
Applications
- Mechanical assemblies requiring secure axial positioning of components on shafts or in bores
- Industrial machinery and automotive components
- General engineering and maintenance tasks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Circlip For Bore Hole Shape J DIN 472 Plain Stainless Steel is available for immediate purchase, ideal for mechanical and industrial applications.
