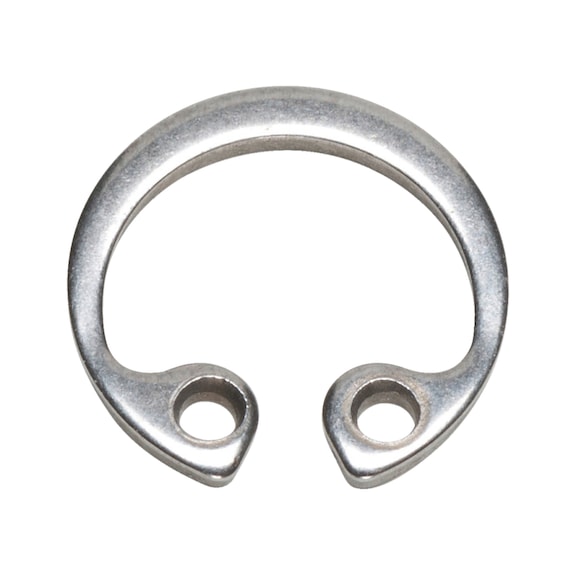

Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | Standard J Form Design | by Wurth
The Circlip for Bore Hole Shape J DIN 472 is crafted from durable stainless steel, ensuring long-lasting performance in mechanical and industrial applications. With a standard J form design and RoHS compliance, it's perfect for securing components on shafts and in bores. Ideal for automotive and industrial machinery, this circlip guarantees reliable retention in rotating equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | Standard J Form Design | by Wurth
Brand: Wurth
SKU: 4890240
Alternatively Known As: Retaining ring, Snap ring, Shaft circlip, Bore circlip
Technical Specifications
- Suitable for holes: 40 mm
- Suitable for groove diameter: 42.5 mm
- Outer diameter (d1): 43.5 mm
- Eye width (a1): 5.8 mm
- Width (b1): 3.9 mm
- Thickness (s1): 1.75 mm
- Standards: DIN 472
- Material: Stainless steel 1.4122 (≤100 mm diameter) and 1.4310 (>100 mm diameter)
- Surface: Plain
- Design: Standard J form
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.9mm x 5.8mm x 43.5mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel grades 1.4122 and 1.4310 depending on diameter
- Plain surface finish
- Standard J form design according to DIN 472
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fit and function.
Applications
- Mechanical engineering: Securing components on shafts and in bores
- Automotive: Retaining rings in assemblies
- Industrial machinery: Securing parts in rotating equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable stainless steel for long service life reducing replacement waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Circlip For Bore Hole Shape J DIN 472 Plain Stainless Steel is available for immediate purchase, ideal for mechanical and industrial securing applications.
