Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | @Pack of 5 | by Wurth

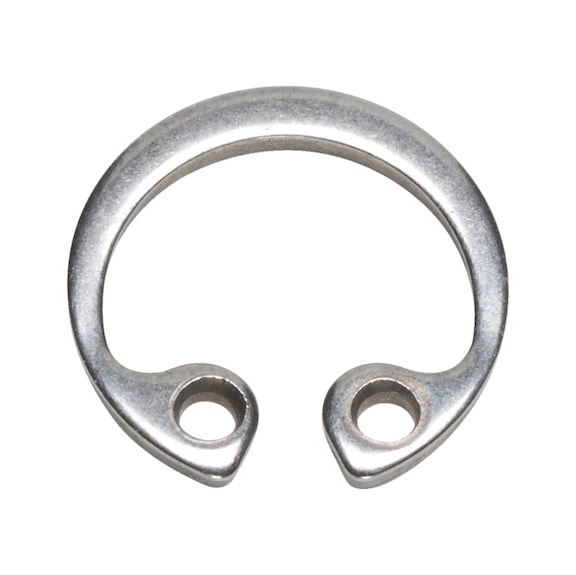

Circlip for Bore Hole Shape J DIN 472 is crafted from durable stainless steel, ensuring corrosion resistance and longevity. Ideal for mechanical assemblies, this RoHS-compliant circlip provides secure axial positioning of components in various applications, including industrial machinery and automotive components. With a standard J shape design, it meets DIN 472 specifications for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole Shape J DIN 472 | Stainless Steel | RoHS Compliant | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 4890226
Alternatively Known As: DIN 472 Circlip, Bore Hole Circlip, J Shape Circlip, Stainless Steel Retaining Ring

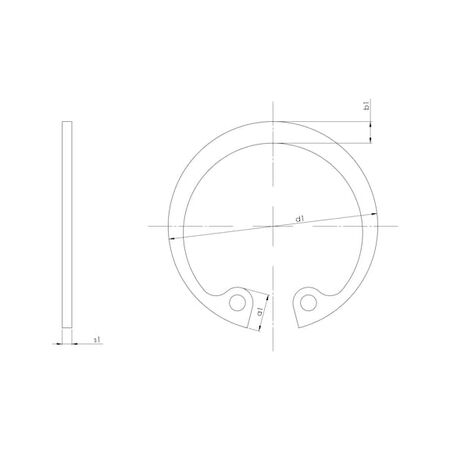

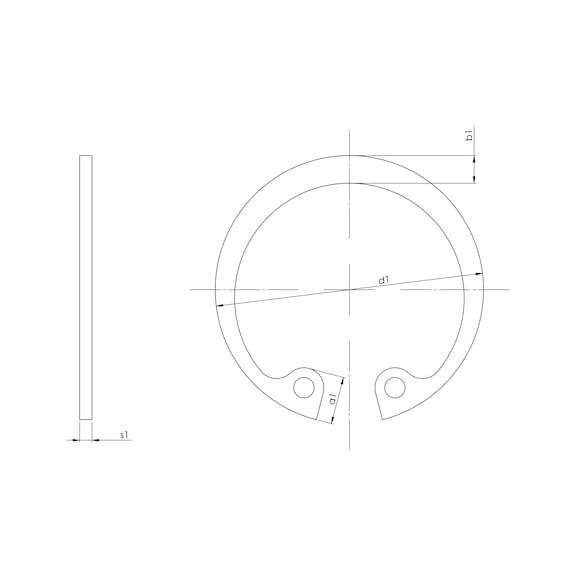

Technical Specifications
- Suitable for holes: 26 mm
- Suitable for groove diameter: 27.2 mm
- Outer diameter (d1): 27.9 mm
- Eye width (a1): 4.7 mm
- Width (b1): 2.8 mm
- Thickness (s1): 1.2 mm
- Material: Stainless steel, grade 1.4122
- Surface: Plain
- Design: Standard J shape
- Standards: DIN 472
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.8mm x 4.7mm x 27.9mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel grade 1.4122 for durability and corrosion resistance
- Plain surface finish
- Standard J shape design according to DIN 472
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with circlip fitting to ensure proper seating and safety.
Applications
- Mechanical assemblies requiring secure axial positioning of components on shafts or in bores
- Industrial machinery and automotive components
- General engineering and maintenance tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from durable stainless steel to reduce replacement frequency and waste
- RoHS-compliant ensuring no hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Circlip For Bore Hole Shape J DIN 472 Plain Stainless Steel 5 PCS is available for immediate purchase, ideal for mechanical and industrial applications.
