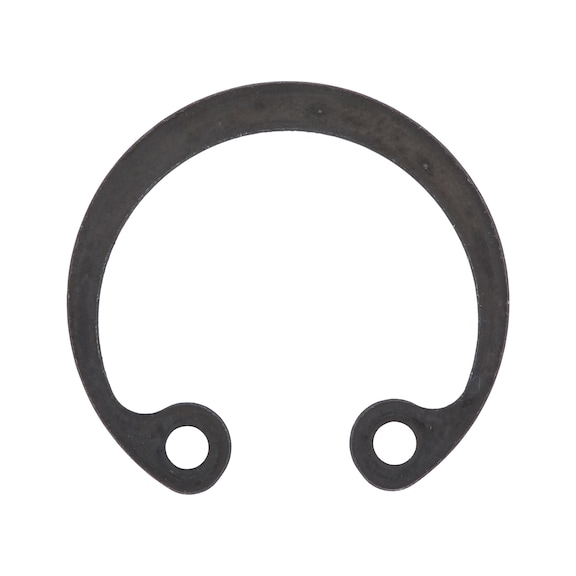

Circlip for Bore Hole | Standard J Shape DIN 472 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for bore hole designed in a standard J shape, made from durable spring steel with a phosphated and oiled surface for enhanced corrosion resistance. Ideal for mechanical assemblies, automotive, and industrial applications, this circlip ensures secure retention of components in bores and on shafts, making it a reliable choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Bore Hole | Standard J Shape DIN 472 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4399
Alternatively Known As: Bore hole circlip, DIN 472 circlip, spring steel retaining ring, J shape circlip
Technical Specifications
- Suitable for holes: 9 mm
- Suitable for groove diameter: 9.4 mm
- Outer diameter (d1): 9.8 mm
- Eye width (a1): 2.5 mm
- Width (b1): 1.3 mm
- Thickness (s1): 0.8 mm
- Standards: DIN 472
- Material: Spring steel
- Surface: Phosphated and oiled
- Design: Standard design
- Form: J
- RoHS-compliant: Yes
- Dimensions (H x L x W): 0.8mm x 9.8mm x 2.5mm
- Weight: 0.05 kg
Key Features
- Standard design circlip with shape J for bore holes
- Made from durable spring steel
- Phosphated and oiled surface for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with circlip fitting to ensure proper seating and safety.
Applications
- Mechanical assemblies requiring secure retention of components on shafts or in bores
- Automotive, industrial machinery, and equipment manufacturing
- General engineering and maintenance tasks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Circlip for bore hole standard version shape J DIN 472 is available for immediate purchase, ideal for mechanical and industrial applications requiring secure component retention.
