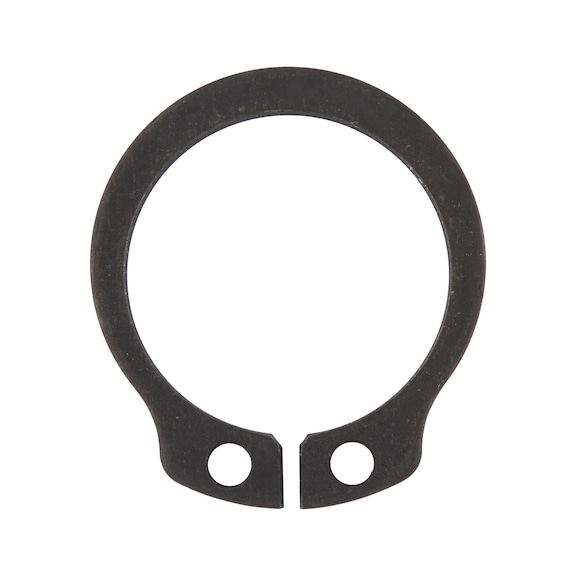

Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for Shafts DIN 471 made from durable spring steel, featuring a phosphated and oiled finish. This circlip is ideal for limiting the movement of machine parts on shafts, ensuring secure retention under high pressure and speed. Designed for easy installation and removal with appropriate pliers, it's perfect for mechanical and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 43811
Alternatively Known As: Shaft Circlip, DIN 471 Circlip, Spring Steel Circlip, Shaft Retaining Ring, Groove Circlip
Technical Specifications
- Suitable for shafts: 11 mm
- Suitable for groove diameter: 10.5 mm

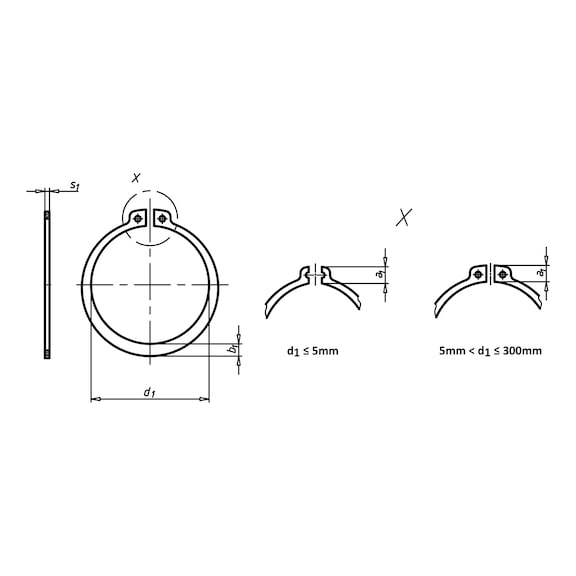

- Internal diameter (d1): 10.2 mm
- Eye width (a1): 3.3 mm
- Width (b1): 1.8 mm
- Thickness (s1): 1 mm
- Standards: DIN 471
- Design: Standard design
- Material: Spring steel
- Surface: Phosphated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.8mm x 11mm x 11mm
- Weight: 0.01 kg
Key Features
- Limits freedom of movement even with rotary movements of machine parts
- Transfers high pressure, tensile, and impact forces without torsion
- Transfers high axial forces from machine parts applying pressure to groove walls
- Can be used at high speeds
- Quick and easy removal using appropriate pliers
Professional Installation Requirements
- Installation requires appropriate circlip pliers and should be performed by a qualified technician to ensure proper fit and safety.
Applications
- Used for safely limiting freedom of movement of machine parts on shafts and in bore holes
- Suitable for rotary movements of machine parts on shafts
- Ideal for transferring high pressure, tensile, and impact forces without torsion
- Can be used at high speeds in mechanical assemblies
- Quick and easy removal with appropriate pliers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable spring steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Circlip for shafts is available now for immediate purchase. Ideal for mechanical and industrial applications requiring secure shaft retention.
