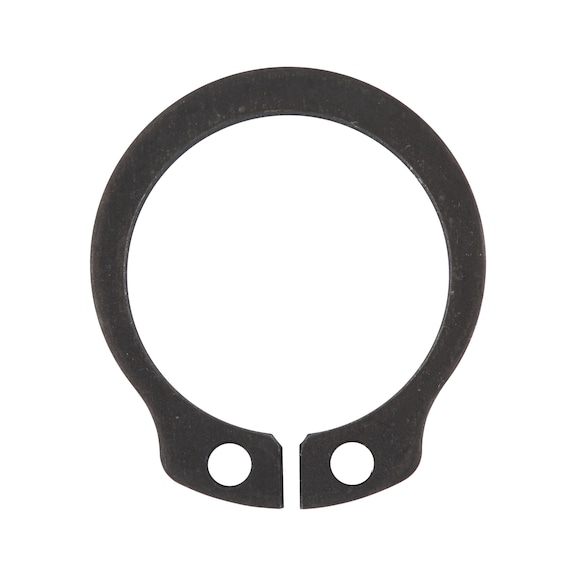

Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
The Circlip for Shafts DIN 471 is crafted from durable spring steel, featuring a phosphated and oiled surface for enhanced corrosion resistance. Ideal for high-speed applications, it securely limits the movement of machine parts while transferring high pressure and tensile forces. Perfect for mechanical assemblies, this circlip ensures reliable performance and easy removal with appropriate pliers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 43813
Alternatively Known As: DIN 471 Circlip, Shaft Circlip, Spring Steel Circlip, Retaining Ring for Shafts, Groove Circlip
Technical Specifications
- Suitable for shafts: 13 mm
- Suitable for groove diameter: 12.4 mm
- Internal diameter (d1): 11.9 mm
- Eye width (a1): 3.4 mm
- Width (b1): 2 mm
- Thickness (s1): 1 mm
- Standards: DIN 471
- Design: Standard design
- Material: Spring steel
- Surface: Phosphated and oiled
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2mm x 13mm x 3.4mm
- Weight: 0.01 kg
Key Features
- Safely limits freedom of movement even with rotary movements of machine parts
- Transfers high pressure, tensile, and impact forces without torsion
- Transfers high axial forces from machine parts applying pressure to groove walls
- Can be used at high speeds
- Quick and easy removal using appropriate pliers
- Phosphated and oiled surface for corrosion resistance
- Made from durable spring steel
Professional Installation Requirements
- Installation requires appropriate circlip pliers and should be performed by a trained technician to ensure proper fit and safety.
Applications
- Used for safely limiting freedom of movement of machine parts on shafts and in bore holes
- Suitable for high-speed shaft applications
- Ideal for transferring high pressure, tensile, and impact forces without torsion
- Applicable in mechanical assemblies requiring axial force transfer and secure groove wall pressure
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable spring steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Circlip for shafts DIN 471 is available for immediate purchase. Ideal for mechanical and industrial applications requiring secure shaft retention.
