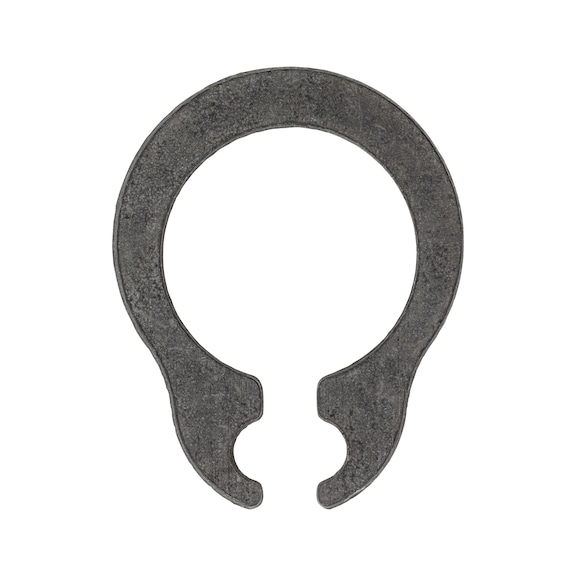

Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for Shafts DIN 471 is crafted from durable spring steel with a phosphated and oiled finish, ensuring reliable performance in mechanical assemblies. Ideal for limiting movement of machine parts on shafts, it can withstand high pressure and impact forces. This pack of 25 is perfect for professionals seeking efficient and secure component retention in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4385
Alternatively Known As: Shaft Circlip, DIN 471 Circlip, Spring Steel Circlip, Shaft Retaining Ring, Groove Circlip

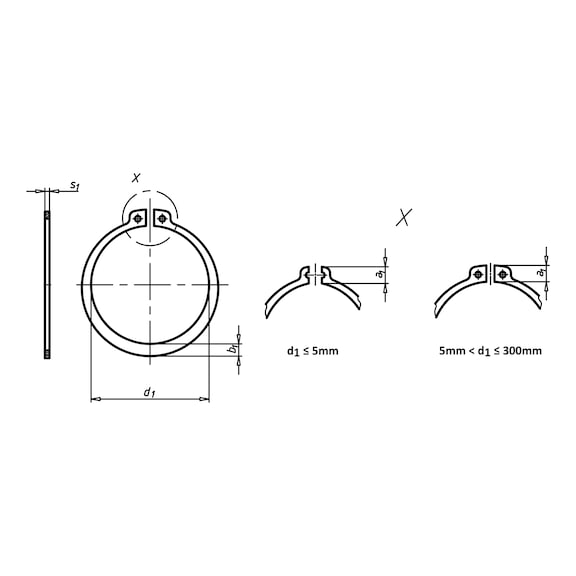

Technical Specifications
- Suitable for shafts: 5 mm
- Suitable for groove diameter: 4.8 mm
- Internal diameter (d1): 4.7 mm
- Eye width (a1): 2.5 mm
- Width (b1): 1.1 mm
- Thickness (s1): 0.6 mm
- Standards: DIN 471
- Design: Standard design
- Material: Spring steel
- Surface: Phosphated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.1mm x 2.5mm x 5mm
- Weight: 0.01 kg
Key Features
- Safely limits freedom of movement even with rotary movements of machine parts
- Transfers high pressure, tensile, and impact forces without torsion
- Transfers high axial forces from machine parts applying pressure to groove wall
- Can be quickly and easily removed using appropriate pliers
- Suitable for shafts with 5 mm diameter and groove diameter of 4.8 mm
- Made from spring steel with phosphated surface
- RoHS-compliant
Professional Installation Requirements
- Installation requires appropriate circlip pliers and should be performed by a trained technician to ensure proper fit and safety.
Applications
- Used for safely limiting freedom of movement of machine parts on shafts and in bore holes
- Suitable for rotary movements of machine parts on shafts
- Can be used at high speeds in mechanical assemblies
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable spring steel construction promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Circlip For Shafts Standard Design Shape A DIN 471 is available for immediate purchase. Ideal for mechanical and industrial applications requiring secure shaft component retention.
