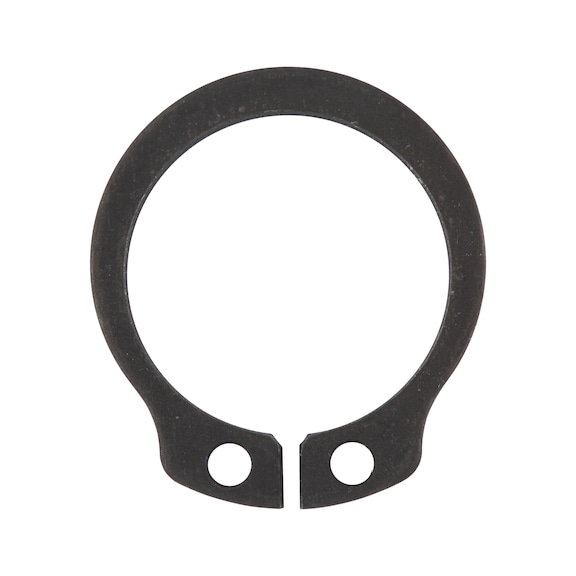

Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Circlip for Shafts DIN 471 made from durable spring steel with a phosphated and oiled finish, ideal for securing machine parts on shafts. This pack of 25 is perfect for mechanical and industrial applications, ensuring high pressure and impact force transfer without torsion. Designed for easy installation and removal, it meets RoHS compliance for safety and environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip for Shafts DIN 471 | Spring Steel | Phosphated & Oiled | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 4389
Alternatively Known As: DIN 471 Circlip, Shaft Circlip, Spring Steel Circlip, Retaining Ring for Shafts

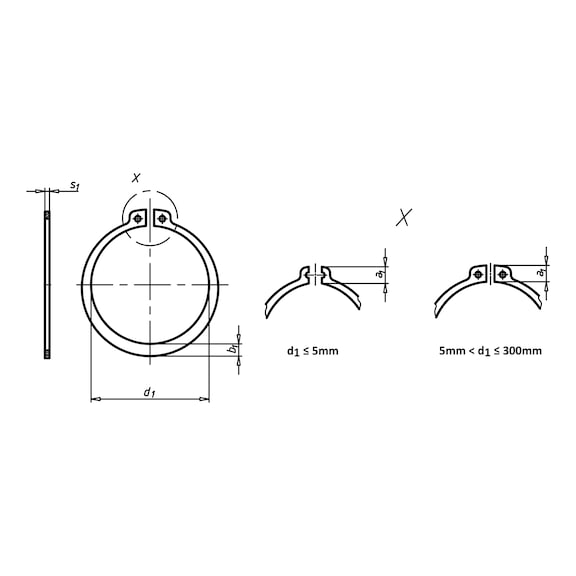

Technical Specifications
- Suitable for shafts: 9 mm
- Suitable for groove diameter: 8.6 mm
- Internal diameter (d1): 8.4 mm
- Eye width (a1): 3.3 mm
- Width (b1): 1.7 mm
- Thickness (s1): 1 mm
- Standards: DIN 471
- Design: Standard design
- Material: Spring steel
- Surface: Phosphated
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.7mm x 9mm x 9mm
- Weight: 0.01 kg
Key Features
- Safely limits freedom of movement even with rotary movements of machine parts
- Transfers high pressure, tensile, and impact forces without torsion
- Transfers high axial forces from machine parts applying pressure to groove wall
- Can be used at high speeds
- Quick and easy removal using appropriate pliers
- Made from spring steel with phosphated surface
- RoHS-compliant
Professional Installation Requirements
- Installation requires appropriate circlip pliers and should be performed by a trained technician to ensure proper fit and safety.
Applications
- Used for safely limiting freedom of movement of machine parts on shafts and in bore holes
- Suitable for rotary movements of machine parts on shafts
- Ideal for transferring high pressure, tensile, and impact forces without torsion
- Can be used at high speeds in mechanical assemblies
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable spring steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Circlip for shafts DIN 471 is available for immediate purchase, ideal for mechanical and industrial applications requiring secure shaft retention.
