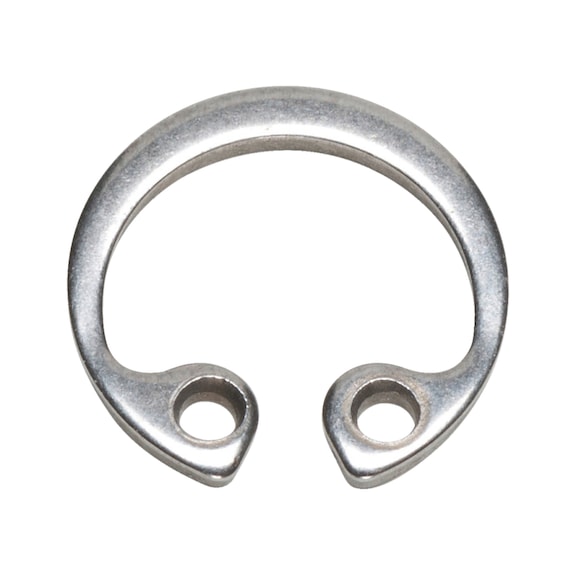

Circlip J Shape DIN 472 | Stainless Steel | RoHS Compliant | @Pack of 10 | by Wurth
Circlip J Shape DIN 472 made from durable stainless steel is perfect for securing components in mechanical and automotive applications. With a plain surface finish and RoHS compliance, these retaining rings ensure safety and reliability in various industrial settings. Ideal for qualified technicians, this pack of 10 is designed for easy installation in bore holes and grooves.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circlip J Shape DIN 472 | Stainless Steel | RoHS Compliant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 4890220
Alternatively Known As: Retaining ring, Snap ring, Circlip J shape, DIN 472 circlip
Technical Specifications
- Suitable for holes: 20 mm
- Suitable for groove diameter: 21 mm
- Outer diameter (d1): 21.5 mm
- Eye width (a1): 4.1 mm
- Width (b1): 2.3 mm
- Thickness (s1): 1 mm
- Material: Stainless steel 1.4122 (≤100 mm diameter), 1.4310 (>100 mm diameter)
- Surface: Plain
- Design: Standard J shape
- Standards: DIN 472
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 21.5mm x 21.5mm
- Weight: 0.01 kg
Key Features
- Made from stainless steel grades 1.4122 and 1.4310 depending on diameter
- Plain surface finish
- Standard J shape design according to DIN 472
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with circlip fitting to ensure secure placement and safety.
Applications
- Mechanical engineering: Securing components on shafts and in bores
- Automotive: Retaining rings in assemblies
- Industrial machinery: Fixing parts in grooves
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Circlip For Bore Hole Shape J DIN 472 Plain Stainless Steel 10 PCS is available for immediate purchase, ideal for mechanical and industrial applications.
