Circuit Breaker 1600A 3P | 65kA | Shunt Trip & Motor 240V AC by NHP
Circuit breaker with 1600A current and 65kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced protection with electronic release and integrated Modbus RTU communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

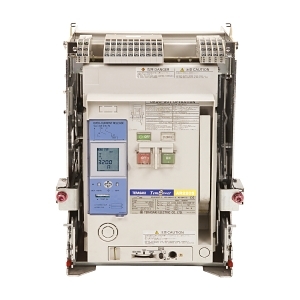

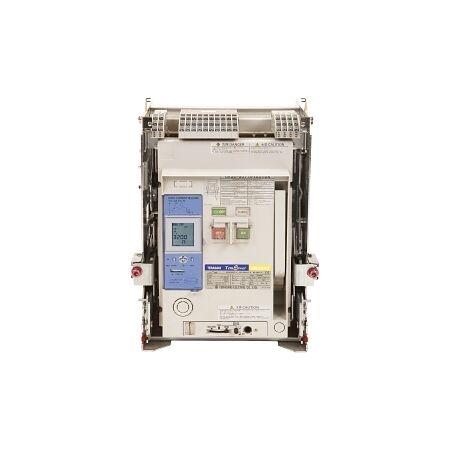

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P with AGR21CL Shunt Trip and Motor 240V AC
Brand: NHP
SKU: ARB2163MSTD
Alternatively Known As: Terasaki ACB, AR ACB Body, Circuit Breaker 1600A
Technical Specifications
- Rated Current: 1600 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 65 kA
- Type of Protection Trip Unit: Electronic release
- Frame Size Rating: 2000 A
- Rated Insulation Voltage: 1000 V
- Integrated Communication Function: Yes
- Motor Drive Integrated: Yes
- Power Loss: 350 W
- Short Time Withstand Current: 65 kA (1 sec), 50 kA (3 sec)
- Mechanical Life: 15000 cycles
- Dimensions (H x L x W): 490mm x 385mm x 354mm
- Weight: 54 kg
Key Features
- Electronic release trip unit for enhanced protection.
- Integrated earth fault protection.
- Modbus RTU communication protocol for monitoring.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Large facilities requiring robust circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety of electrical equipment.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances operational efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P with AGR21CL Shunt Trip and Motor 240V AC is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
