Circuit Breaker 1600A | 65kA Short Circuit | Non Auto | 3P by NHP

BRAND: NHP
SKU: ARB2163NASTD
$10,215.00 List price: $13,564.20
Free pick up (over 25 kg)
For delivery quote message
Circuit breaker with 1600A rated current and 65kA short circuit capacity—ideal for industrial and commercial power distribution. Built for robust circuit protection, with non-auto switch trip unit for enhanced safety.

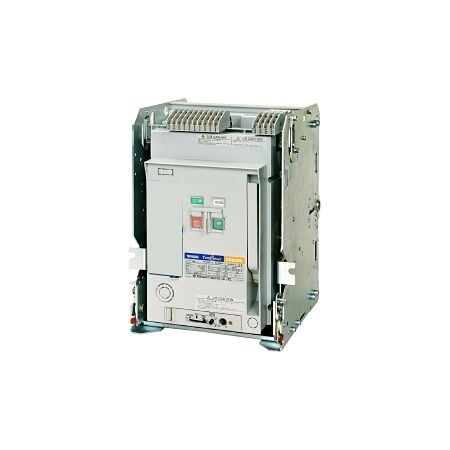

Product Name/Title: Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto

Brand: NHP

SKU: ARB2163NASTD

Alternatively Known As: Terasaki ACB, AR ACB Body, Circuit Breaker

Technical Specifications
  • Rated ultimate short circuit breaking capacity: 65 kA at 415 V, 50 Hz
  • Rated insulation voltage: 1000 V
  • Rated frequency: 50-60 Hz
  • Electrical life: 12000 cycles
  • Mechanical life: 15000 cycles
  • Power loss: 350 W
  • Over voltage category: IV
  • Rated impulse withstand voltage: 12 kV
  • Dimensions (H x L x W): 490mm x 385mm x 354mm
  • Weight: 54 kg
Key Features
  • Rated current: 1600 A
  • 65 kA short circuit breaking capacity
  • Non auto-switch trip unit
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemPower 2 AR ACB Body AR2 65kA 1600A 3P Non Auto is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

Non-Returnable & Non-Cancellable

ARB2163NASTD-AU-AR-ACB-Body-Datasheet.pdf (ARB2163NASTD-AU-AR-ACB-Body-Datasheet.pdf, 394 Kb) [Download]
