Circuit Breaker 2 Pole 6kA | 6A C Curve | DIN Rail Mount by Connected Switchgear
Circuit breaker with 6kA breaking capacity and 6A C curve—ideal for commercial and industrial applications. Built for reliable circuit protection, with easy DIN rail mounting and lockable toggles for added safety.
Sign in
Please login to continue to your account.

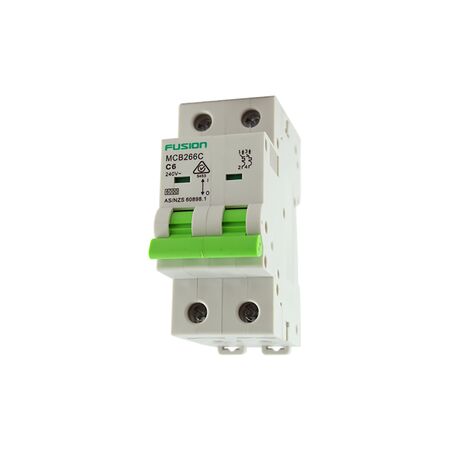

Product Name/Title: Circuit Breaker 2 Pole 6kA 6A
Brand: Connected Switchgear
SKU: MCB266C
Alternatively Known As: Miniature Circuit Breaker, MCB, 2 Pole Circuit Breaker, 6kA Circuit Breaker
- Product Code: MCB266C
- Voltage: 240V/415V AC
- Amperage: 6A
- Configuration: C Curve
- Approval: Energy Safe Victoria
- Dimensions (H x L x W): 90mm x 70mm x 36mm
- Weight: 0.5 kg
- 6kA breaking capacity for enhanced protection.
- 18mm pole width with ON/OFF indicators.
- 35mm DIN rail mounting for easy installation.
- Lockable toggles for added safety.
- Pin/fork type busbar terminal connection.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Commercial: Suitable for industrial applications requiring reliable circuit protection.
- General: Ideal for any installation needing overload and short circuit protection.
- Complies with AS/NZS 60898.1 and AS/NZS 60947.2 for safety and performance standards.
- Durable design reduces the need for frequent replacements, minimizing waste.
5 years warranty covering replacement and installation by an authorised electrician.
The Circuit Breaker 2 Pole 6kA 6A is available now for immediate purchase. Ideal for commercial and industrial applications requiring reliable circuit protection.
