Trade Discount 20%

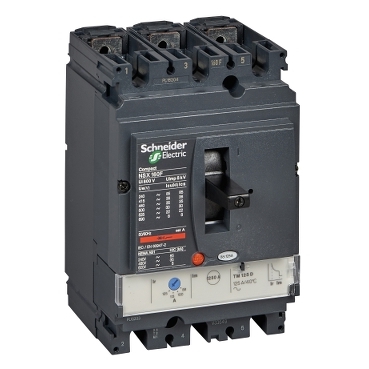

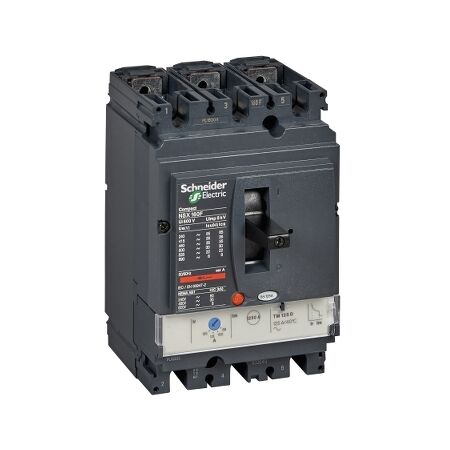

Circuit Breaker 25KA 87-125A | Molded Case | 3 Pole | Thermal-Magnetic Trip | @Pack of 1 | by Clipsal
The Circuit Breaker 25KA 87-125A is a high-performance molded case circuit breaker designed for commercial and industrial electrical distribution systems. With an adjustable rated current of 87-125A and a breaking capacity of 25kA at 415VAC, it ensures reliable protection against overloads and short circuits. Ideal for switchboards and panelboards, this robust breaker is built to withstand demanding environments while complying with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circuit Breaker 25KA 87-125A | Molded Case | 3 Pole | Thermal-Magnetic Trip | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430311
Alternatively Known As: ComPact NSX160B, 125A MCCB, 25kA Circuit Breaker, SCHLV430311, 3 Pole MCCB, Molded Case Circuit Breaker
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Model: ComPact NSX160B
- Rated current: Adjustable 87-125A
- Breaking capacity: 25kA at 415VAC
- Number of poles: 3
- Trip unit: Thermal-magnetic (TMD)
- Standards: IEC 60947-2
- Mounting: Fixed
- Operating voltage: 415VAC
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- ComPact NSX160B molded case circuit breaker
- Rated current: Adjustable 87-125A
- Breaking capacity: 25kA at 415VAC
- 3 poles, 3d (three-pole, direct connection)
- Thermal-magnetic (TMD) trip unit for overload and short-circuit protection
- High reliability and robust construction
- Suitable for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal ComPact NSX160B Circuit Breaker 25kA 87-125A (SCHLV430311) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
