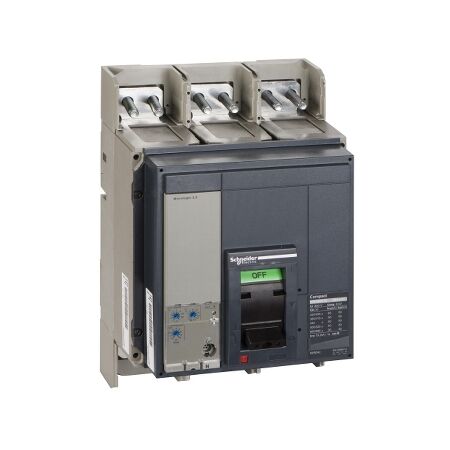

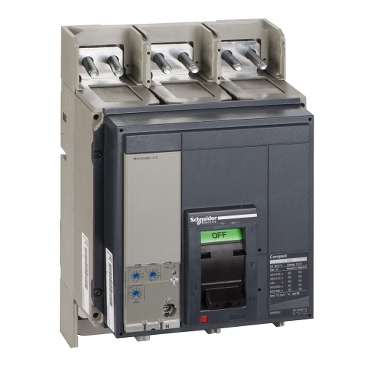

Circuit Breaker Compact NS1000N Microlog | 1000A Rated Current | 50kA Breaking Capacity | Micrologic 2.0 Trip Unit | @Pack of 1 | by Clipsal
The Circuit Breaker Compact NS1000N Microlog is engineered for high-capacity circuit protection, featuring a robust 1000A rated current and a breaking capacity of 50kA at 415 VAC. Ideal for commercial and industrial electrical distribution systems, this breaker ensures reliable fault interruption and advanced protection with its Micrologic 2.0 electronic trip unit. Designed for fixed mounting, it’s perfect for main and sub-main switchboards in large buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circuit Breaker Compact NS1000N Microlog | 1000A Rated Current | 50kA Breaking Capacity | Micrologic 2.0 Trip Unit | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH33472
Alternatively Known As: NS1000N Circuit Breaker, Compact NS1000N, Schneider NS1000N, Micrologic 2.0 Circuit Breaker, 1000A MCCB, SCH33472
Technical Specifications
- Rated current: 1000A
- Breaking capacity: 50kA at 415 VAC
- Trip unit: Micrologic 2.0 electronic
- Number of poles: 3
- Mounting: Fixed
- Frequency: 50/60 Hz
- Rated insulation voltage: 690V
- Utilization category: A
- Standards: IEC 60947-2
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 325mm x 150mm x 210mm
- Weight: 35 kg
Key Features
- High breaking capacity of 50 kA at 415 VAC
- Micrologic 2.0 electronic trip unit for advanced protection
- 1000A rated current for heavy-duty applications
- Fixed mounting design
- 3 poles, 3d configuration for three-phase systems
- Compact size for space-saving installation
- Reliable circuit protection and fault interruption
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in large buildings
- Infrastructure and utility installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Designed for long operational life, reducing replacement frequency and waste
- Improved energy efficiency through precise circuit protection
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Circuit Breaker Compact NS1000N Micrologic 2.0 is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring high-capacity circuit protection.
