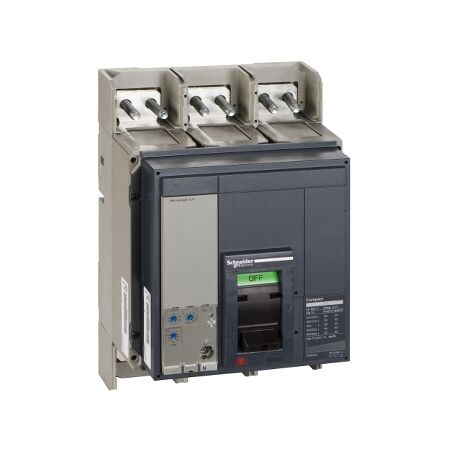

Circuit Breaker Compact NS1250N | 1250A Rated Current | 3 Pole MCCB | High Breaking Capacity | @Pack of 1 | by Clipsal
The Circuit Breaker Compact NS1250N is designed for reliable circuit protection in commercial and industrial electrical distribution systems. With a rated current of 1250A and a high breaking capacity of up to 50kA at 415V AC, it features a Micrologic 2.0 trip unit for advanced monitoring. Ideal for main and sub-main switchboards, this robust breaker ensures safety and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Circuit Breaker Compact NS1250N | 1250A Rated Current | 3 Pole MCCB | High Breaking Capacity | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH33478
Alternatively Known As: NS1250N Circuit Breaker, Schneider NS1250N, Compact NS1250N 1250A, SCH33478, 3 Pole MCCB
Technical Specifications
- Rated current: 1250A
- Number of poles: 3
- Breaking capacity: Up to 50kA at 415V AC
- Trip unit: Micrologic 2.0 electronic
- Rated operational voltage: 690V AC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 325mm x 150mm x 210mm
- Weight: 18 kg
Key Features
- High breaking capacity for reliable circuit protection
- Micrologic 2.0 trip unit for advanced protection and monitoring
- Rated current: 1250A
- 3 poles, 3 terminals
- Compact design for space-saving installation
- Robust construction for demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in large buildings
- Infrastructure and utility installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by minimizing downtime and electrical faults
- Long operational life reduces replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Circuit Breaker Compact NS1250N SCH33478 is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring high-capacity circuit protection.
