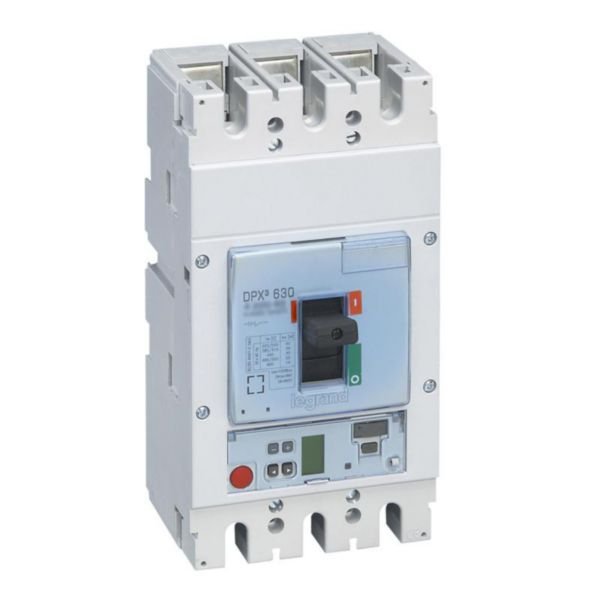

Circuit Breaker DPX3 630 | 4 Poles | 630A Rated Current | Thermal Magnetic Protection | @EA of 1 | by Legrand
The Circuit Breaker DPX3 630 is designed for high power circuit protection, featuring 4 poles and a rated current of 630A with thermal magnetic protection. Ideal for industrial and commercial electrical systems, it ensures safety and reliability, reducing the risk of overloads and equipment damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current: 400 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 70 kA
- Overload release current setting: 160-400 A
- Adjustment range short-term delayed short-circuit release: 240-4000 A
- Adjustment range undelayed short-circuit release: 5000 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 2
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 200mm x 120mm x 150mm
- Weight: 10 kg
Key Features
- Breaking capacity of 36kA according to EN/IEC 60947-2
- Rated insulation voltage of 800V and impulse withstand voltage of 8kV
- Thermal protection adjustable from 0.8 to 1.0 of rated current
- Magnetic protection adjustable from 5 to 10 times rated current
- Can be equipped with undervoltage and shunt releases and auxiliary contacts
- Locking accessories and various connection accessories available
- Available in plug-in version with special terminals
- Optional earth leakage protection module can be added
- IP30 degree of protection
- Screw connection for main circuit
- Front side connection position
- Motor drive optional
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and correct configuration of protection settings.
Applications
- Industrial power installations requiring high power circuit protection
- Commercial electrical distribution boards and switchboards
- High power electrical systems needing thermal and magnetic protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting electrical systems from overloads
- Durable design reduces need for frequent replacements and waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand DPX3 630 circuit breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
